Atlas 9KOHX 9000 lb Overhead 2 Post Lift
$Â 1,689
$Â 2,599
Atlas 9000 lb Overhead 2 Post Lift

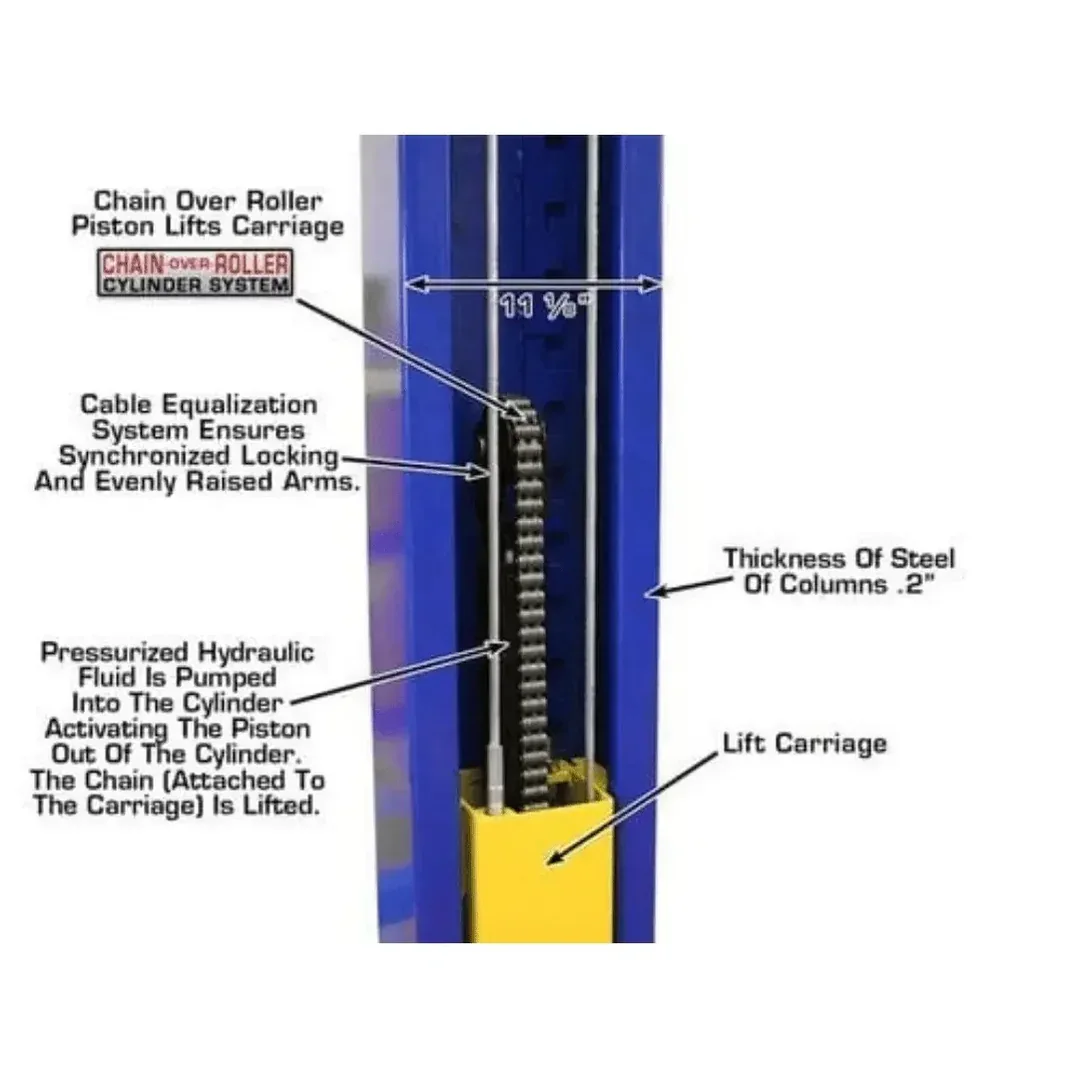

The Atlas® 9KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® 9KOHX two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.
The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price
Product Features
- 9,000 lb. Capacity
- Overhead, Open-Floor design

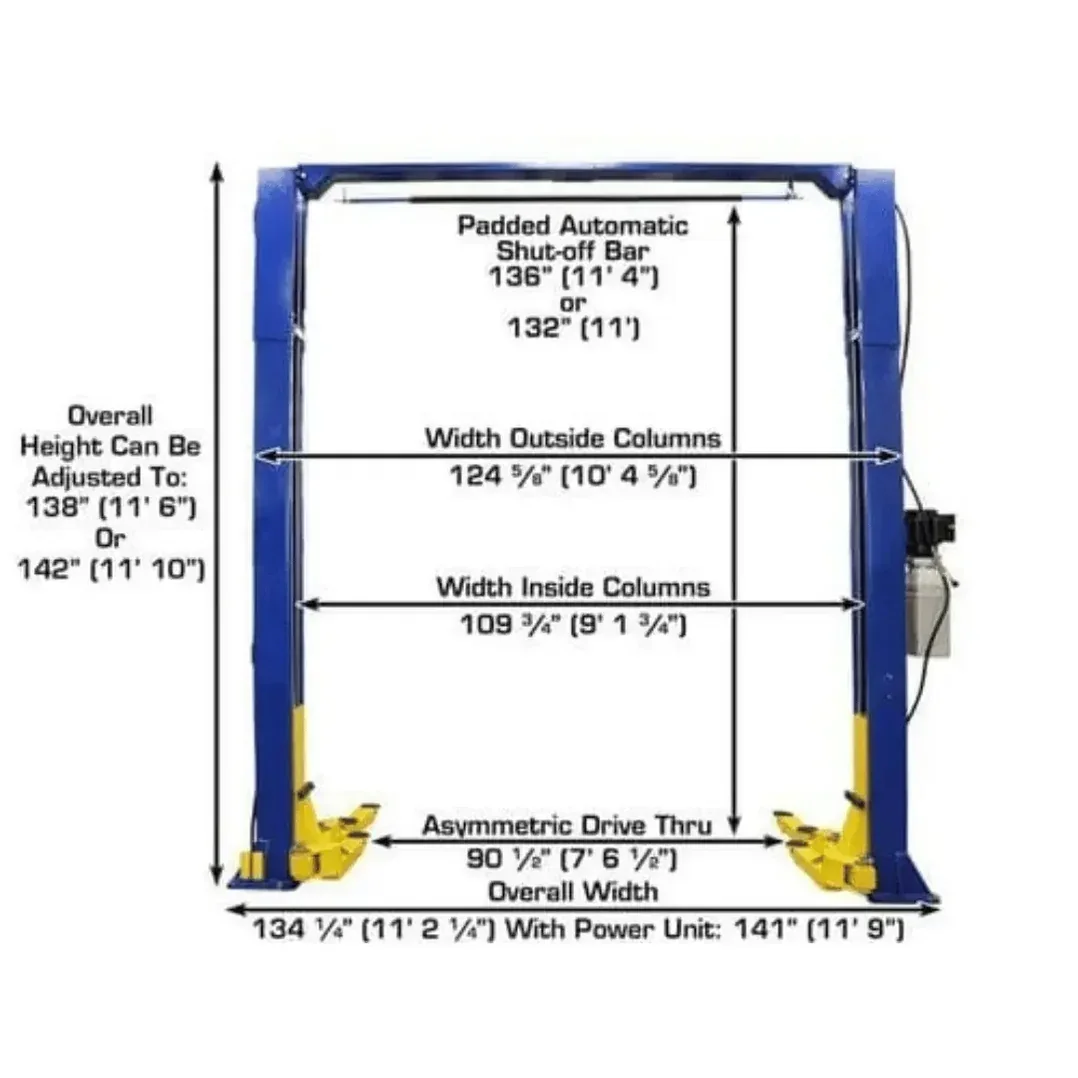

- Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)

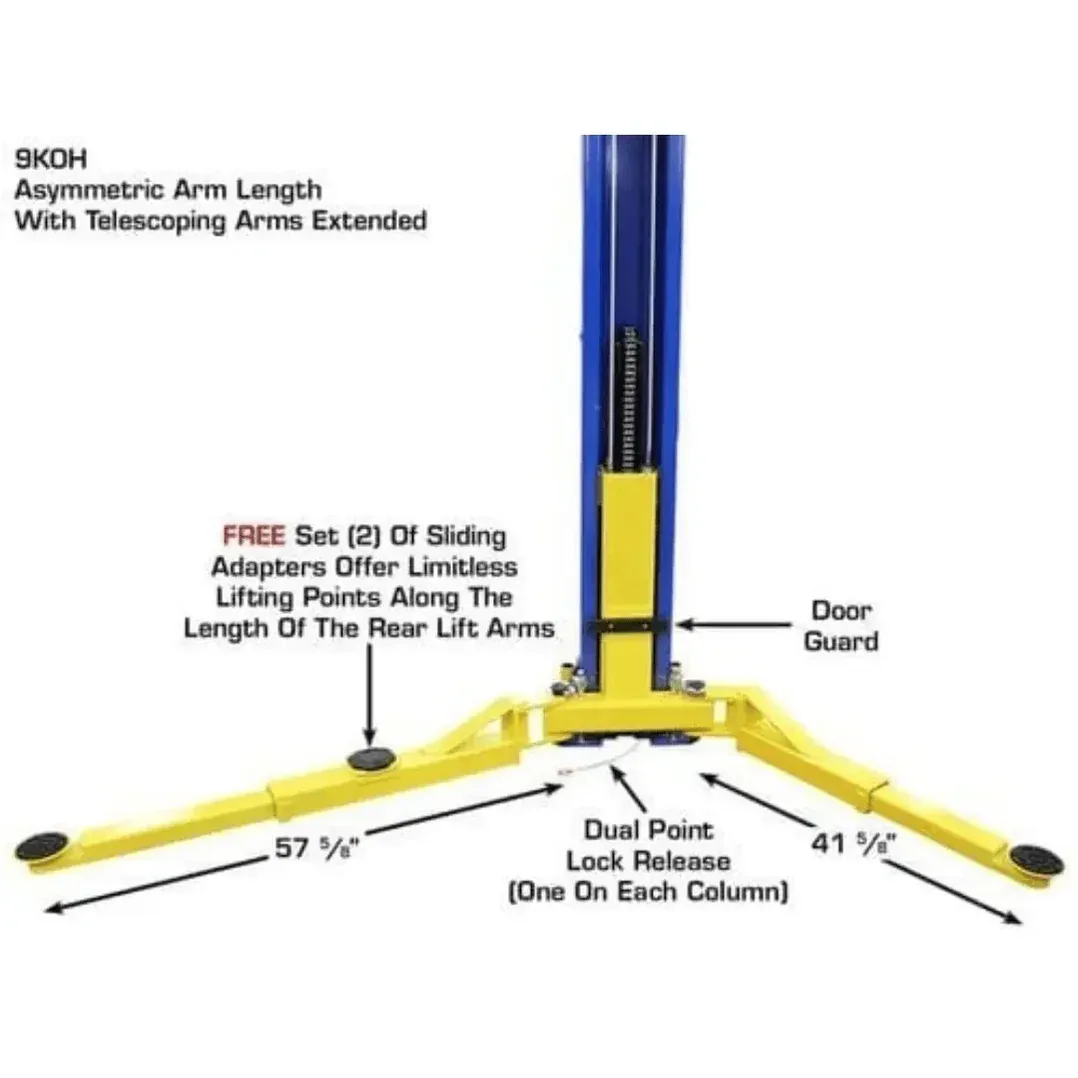

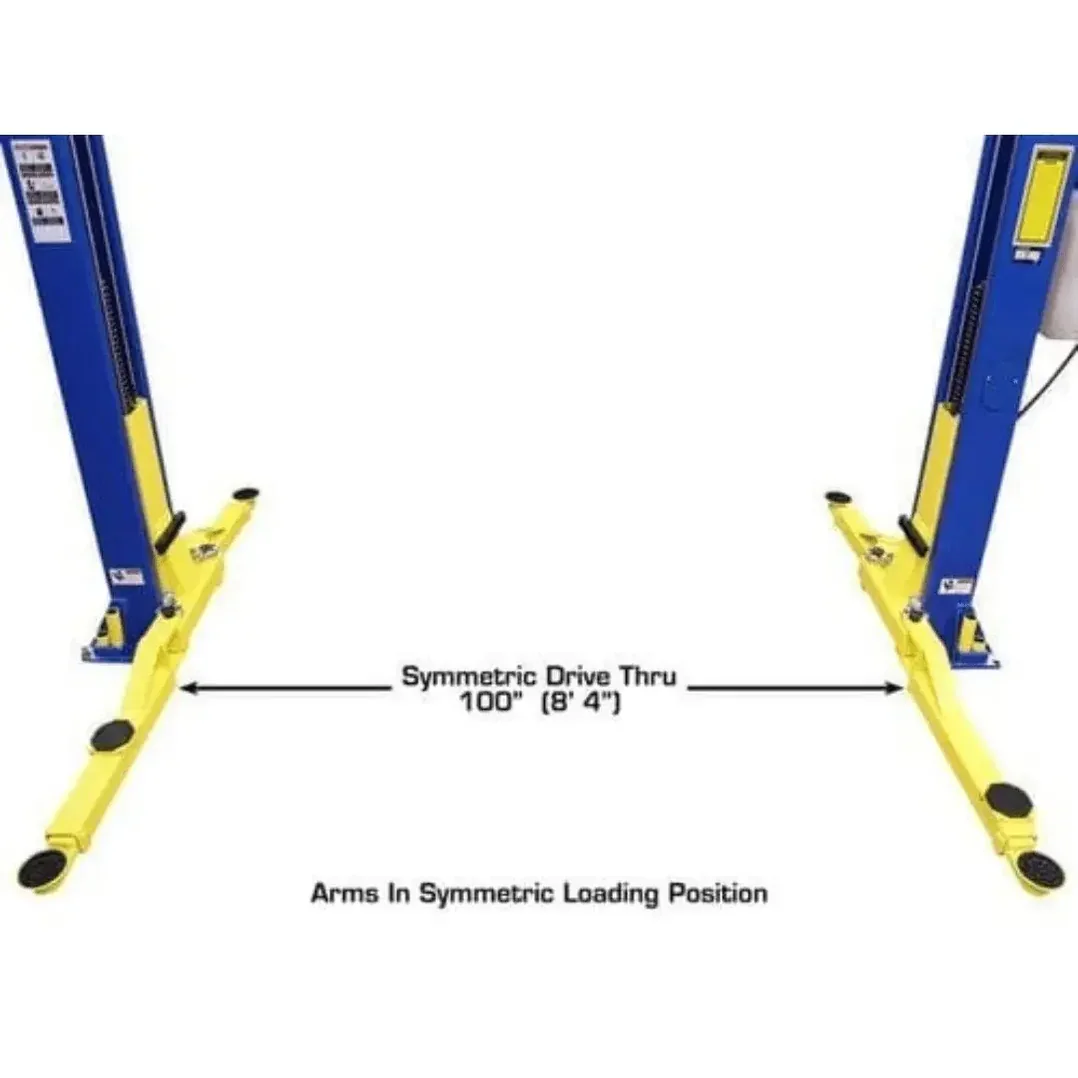

- Asymmetric/Symmetric Arms

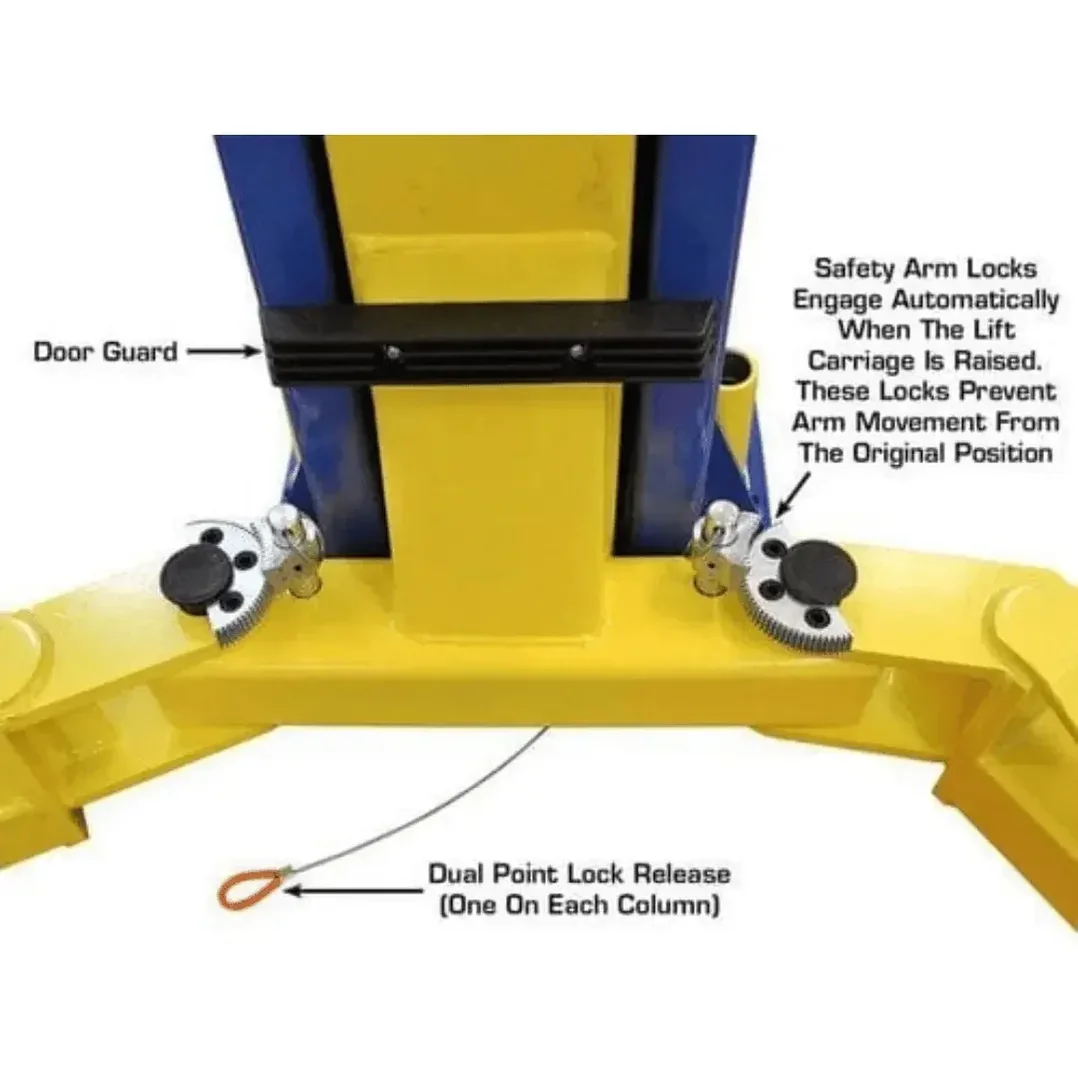

- Automatic Arm Restraints
- Dual-Point Lock Release

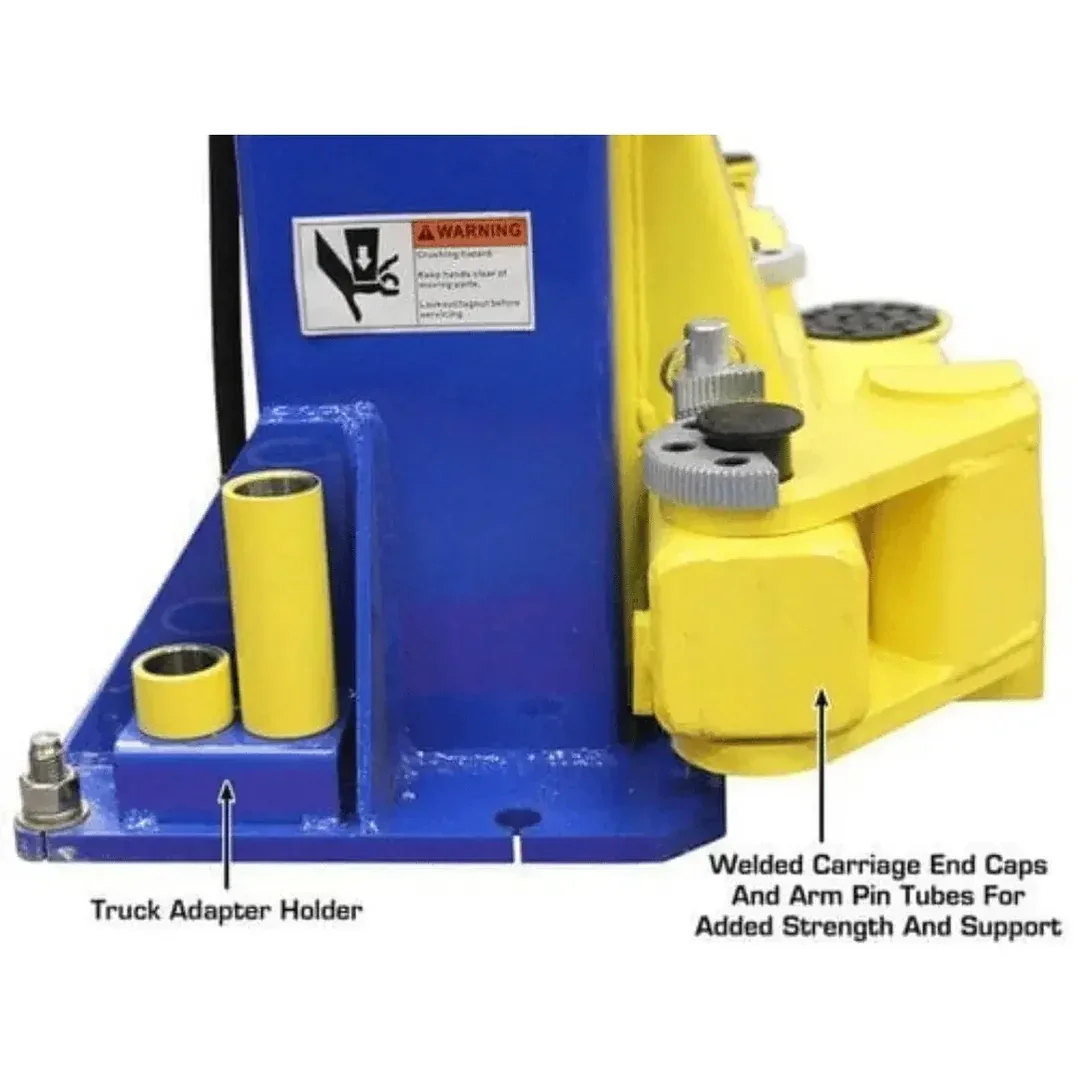

- Rubber Guards on Carriages

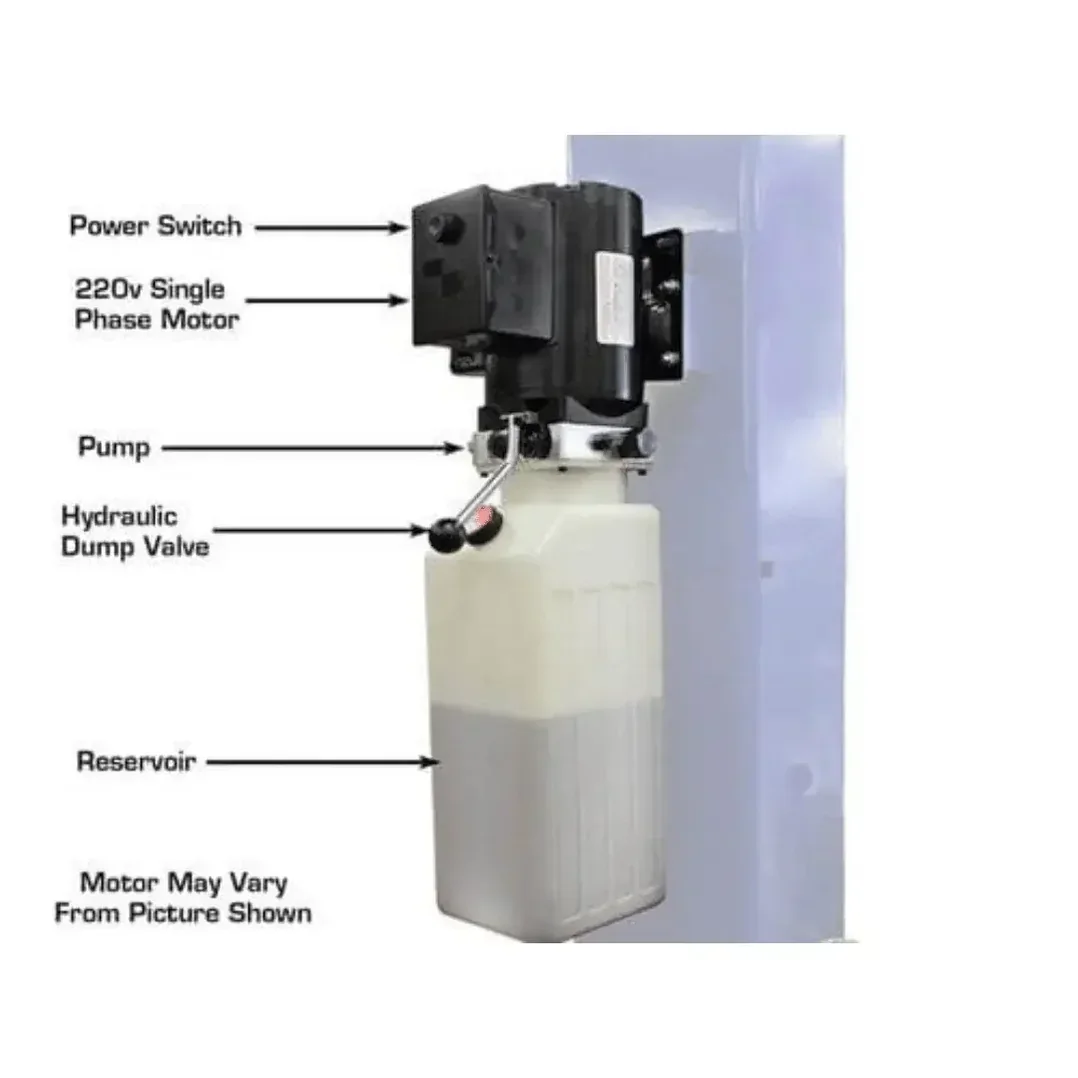

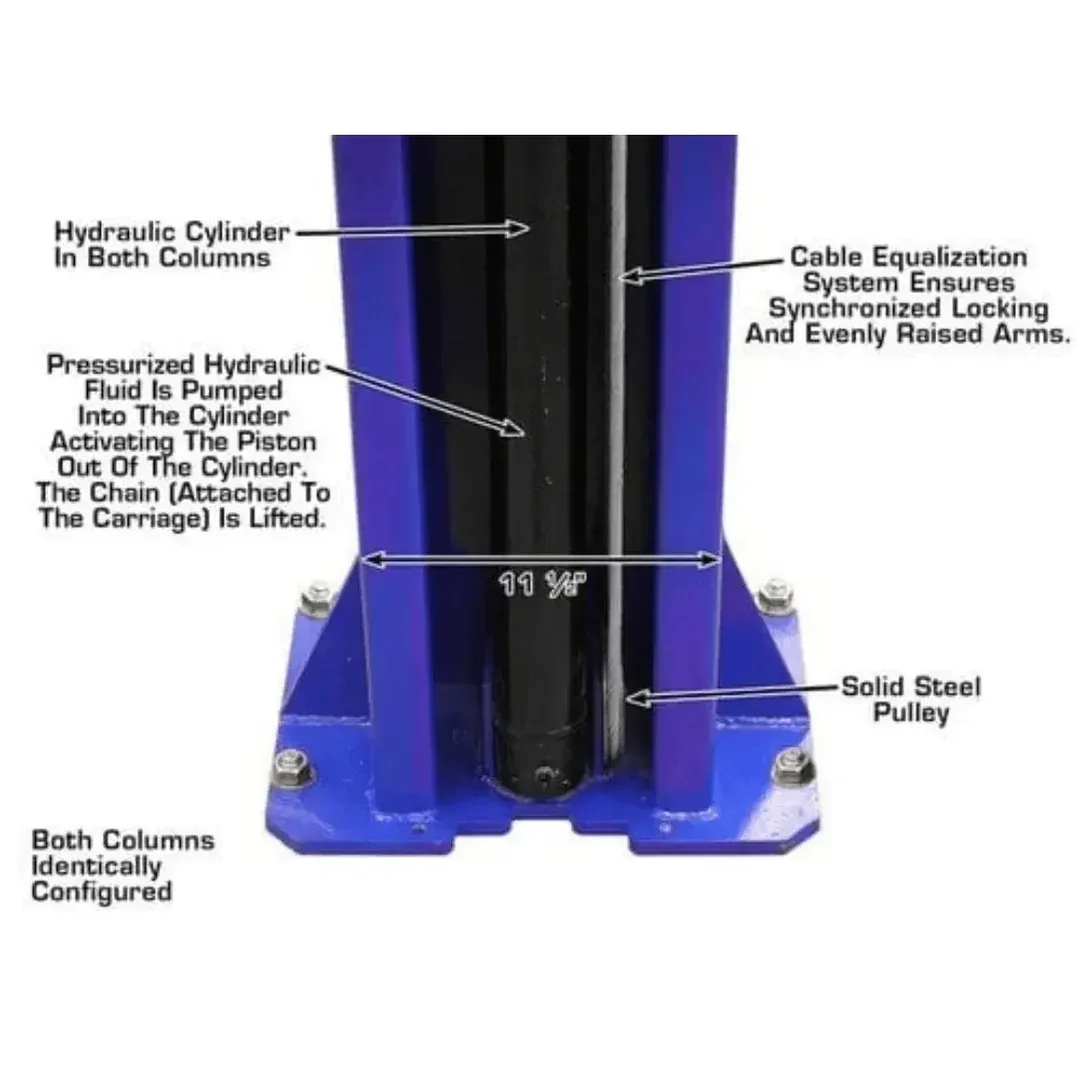

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System

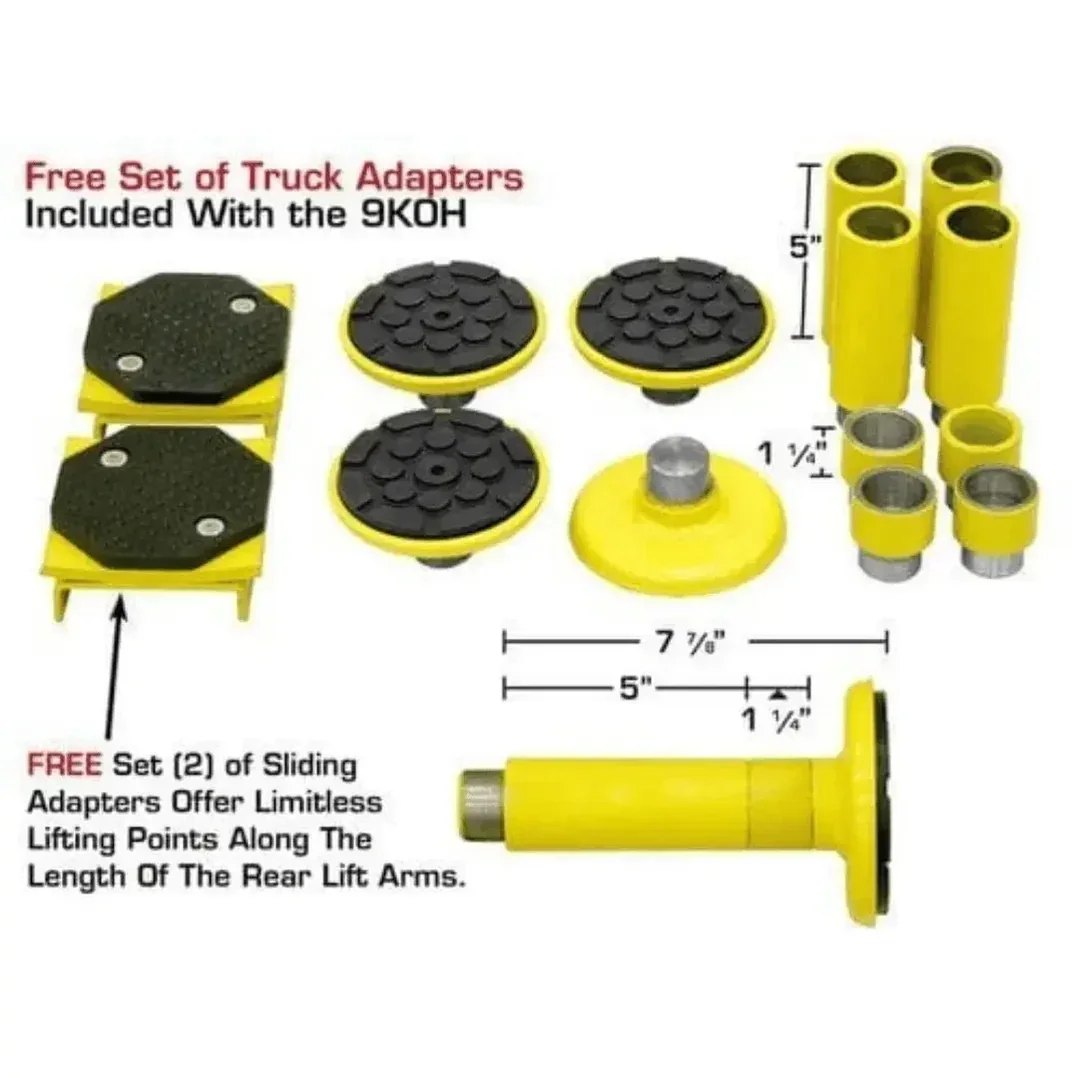

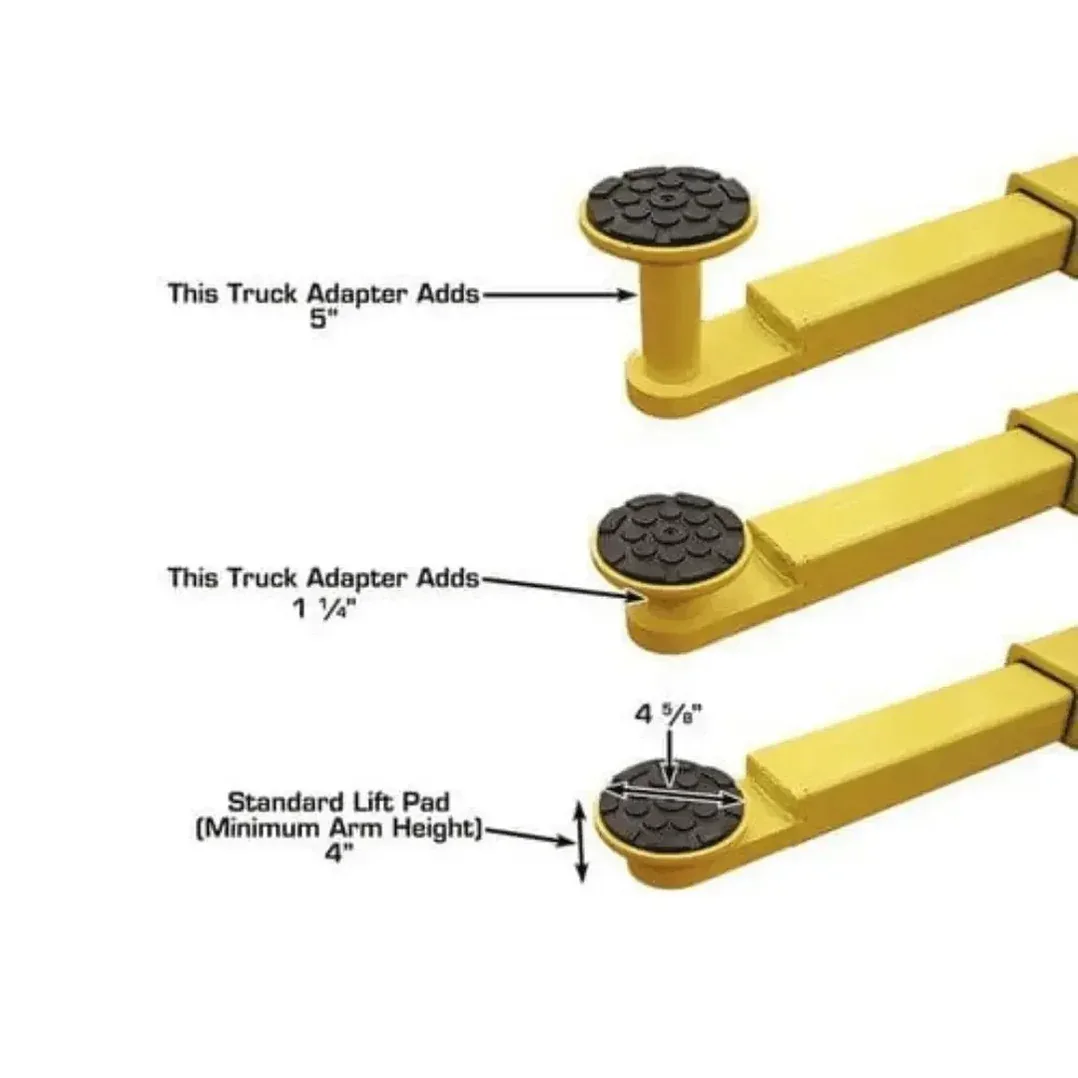

- Free 8 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters

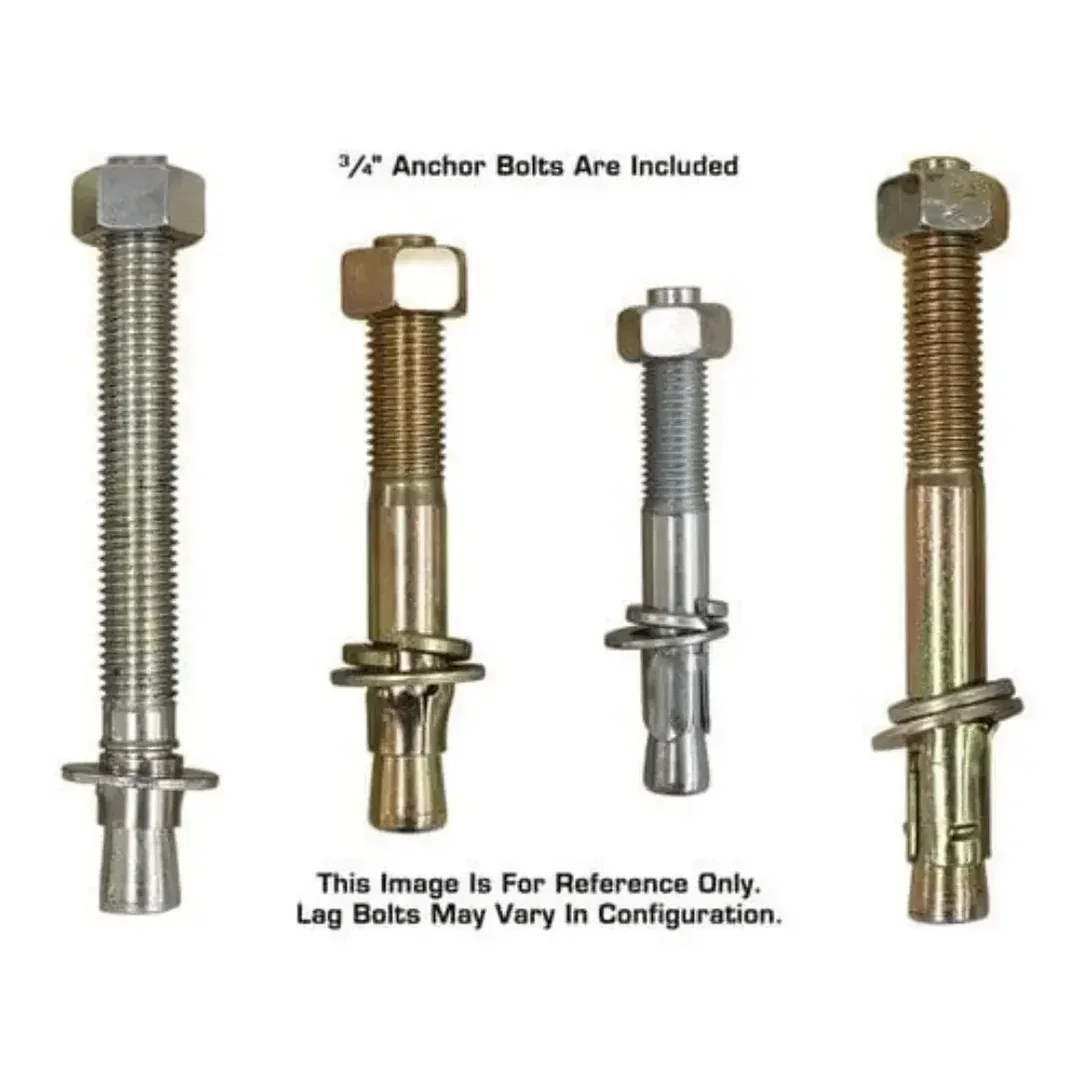

- Mounting Hardware Included

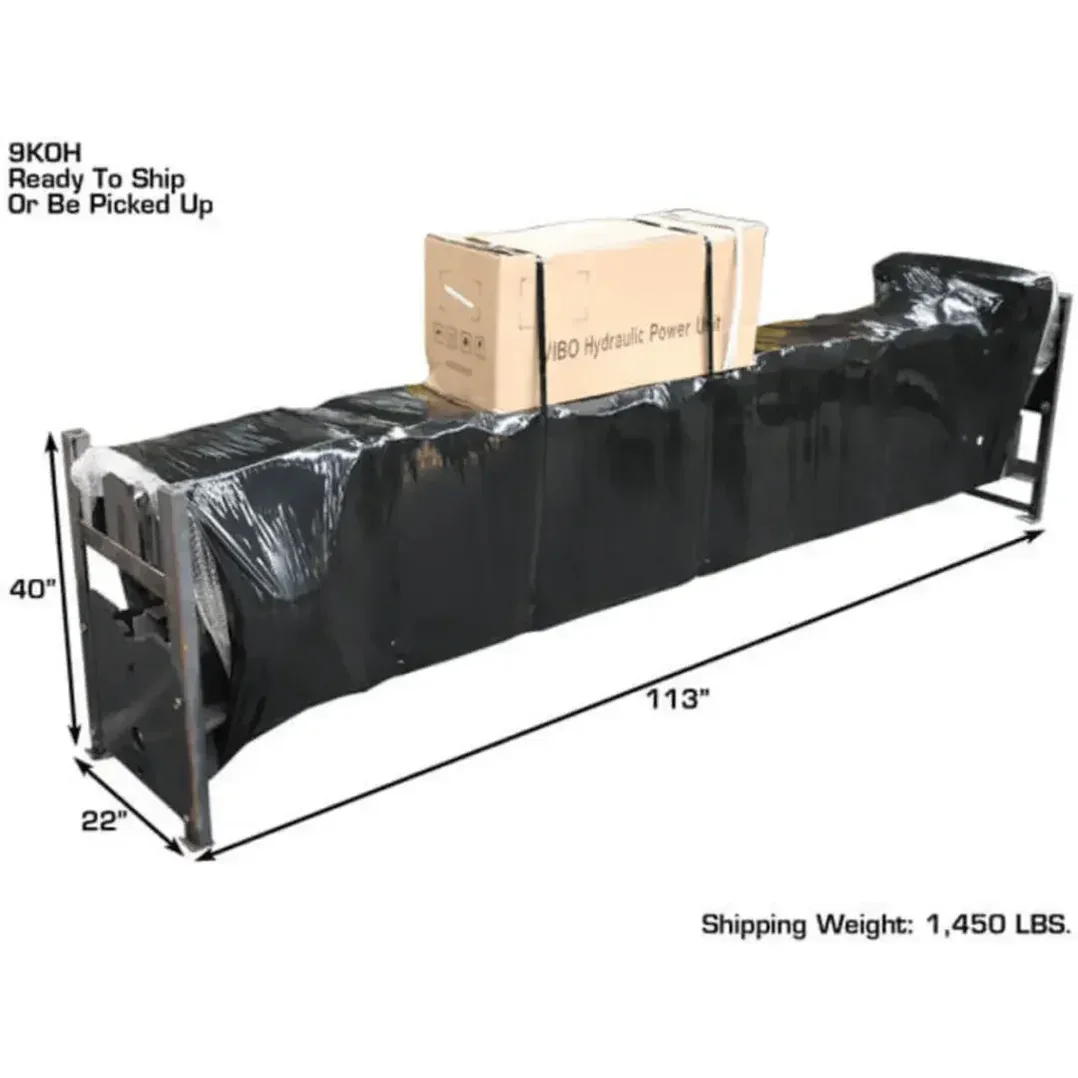

- Shipping Weight: 1,450 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
- This part number FREIGHT PREPAID
- Specification Value

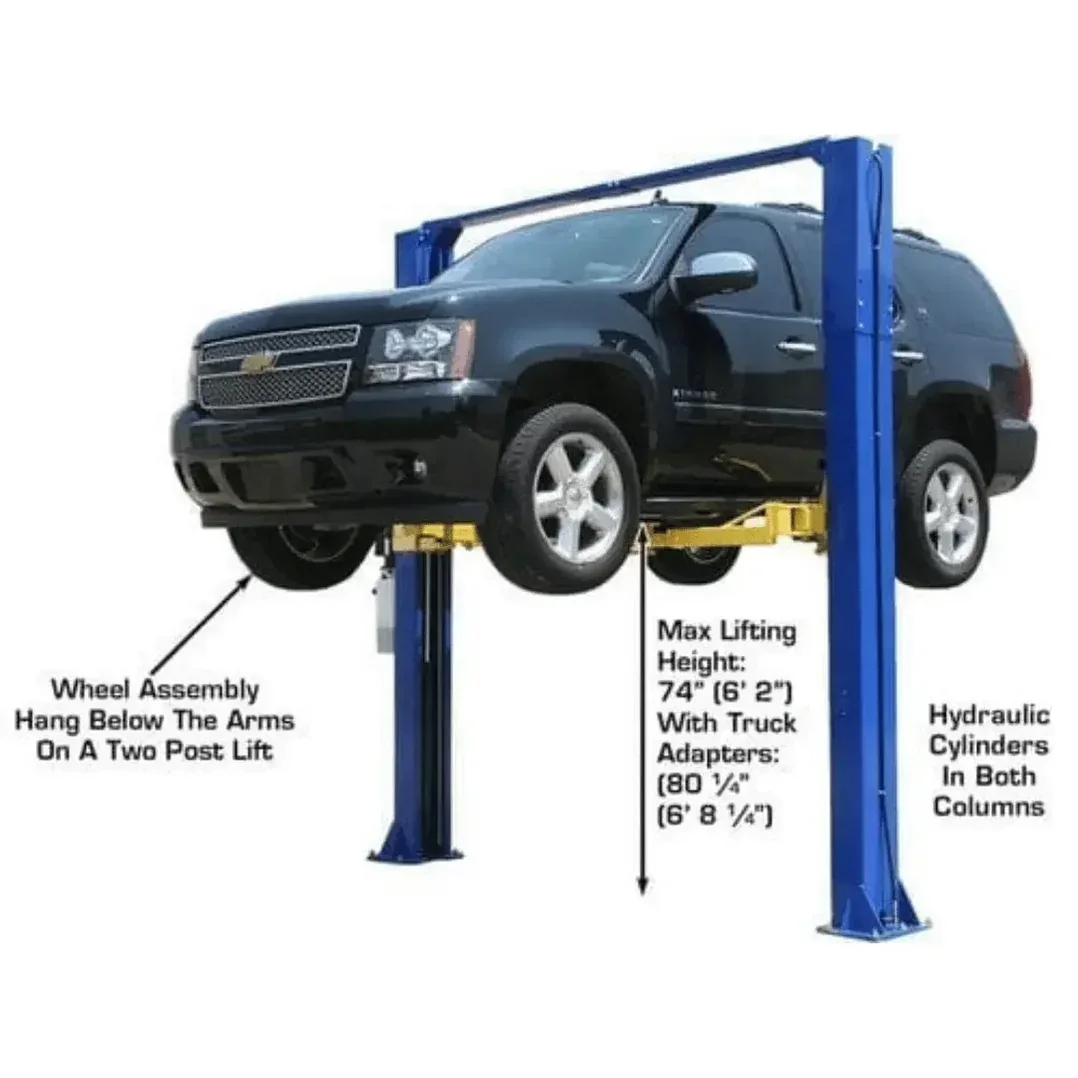

Drive Thru Width 8.4 ft Drive Thru Between Carriage 90"–100" Inside Columns 110" Lifting Capacity 9,000 lbs Lifting Height (Top of Arms) 6.75 ft Lifting Height (Top of Pad) 74"–81" Max Rise Under Arms 6 ft / 74" Minimum Lowered Arm Height 4" Minimum Pad Height 4" Motor 220V Overall Width 11.25 ft / 134" Overall Height 138"–142" Width Between Columns 9.2 ft UPC 810524028318 Warehouses Fresno, California; Tempe, Arizona; Arlington, Texas; Greenfield, Indiana; Buford, Georgia; Orlando, Florida; Somerset, New Jersey Resources
-For more detailed information and guidance, you can download the following:
