Atlas ATTD-414 14000 lb Commercial 4-Post Car Lift
$Â 4,709
$Â 7,849
Atlas ATTD-414 14000 lb Commercial 4-Post Car Lift
The Atlas® 414 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® 414 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas® 414 has been manufactured to the same exacting specifications for many years.
The Atlas® 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
Finally, the Atlas® 414 features “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ8000BK) on the lift. Rolling jacks sold separately.
Product Features14,000 lb. CapacityHeavy Duty, Commercial GradeExtra Tall, Extra Wide & Extra LongVDiamond Plated RunwaysAir Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)Lock Ladder DesignDouble Lock Safety SystemPowder Coat FinishSteel Approach Ramps IncludedAdditional Drive off Ramps Available (Sold Separately)Runway Extensions Available (Sold Separately)Mounting Hardware Included220volt/1phase Electric Operation (Requires a 30amp Breaker)Shipping Weight: 3,100 lbs.5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Specifications
-Drive thru widthDrive thru between carriageInside columnsLifting capacityLifting height top of runwayLifting height top of runwayMax rise under runwayMax rise under runwayOutside edge of runwaysOutside edge of runwaysOverall lengthOverall widthOverall heightsOverall lengthOverall widthRunway lengthRunway lengthWidth between columns
Specification Value

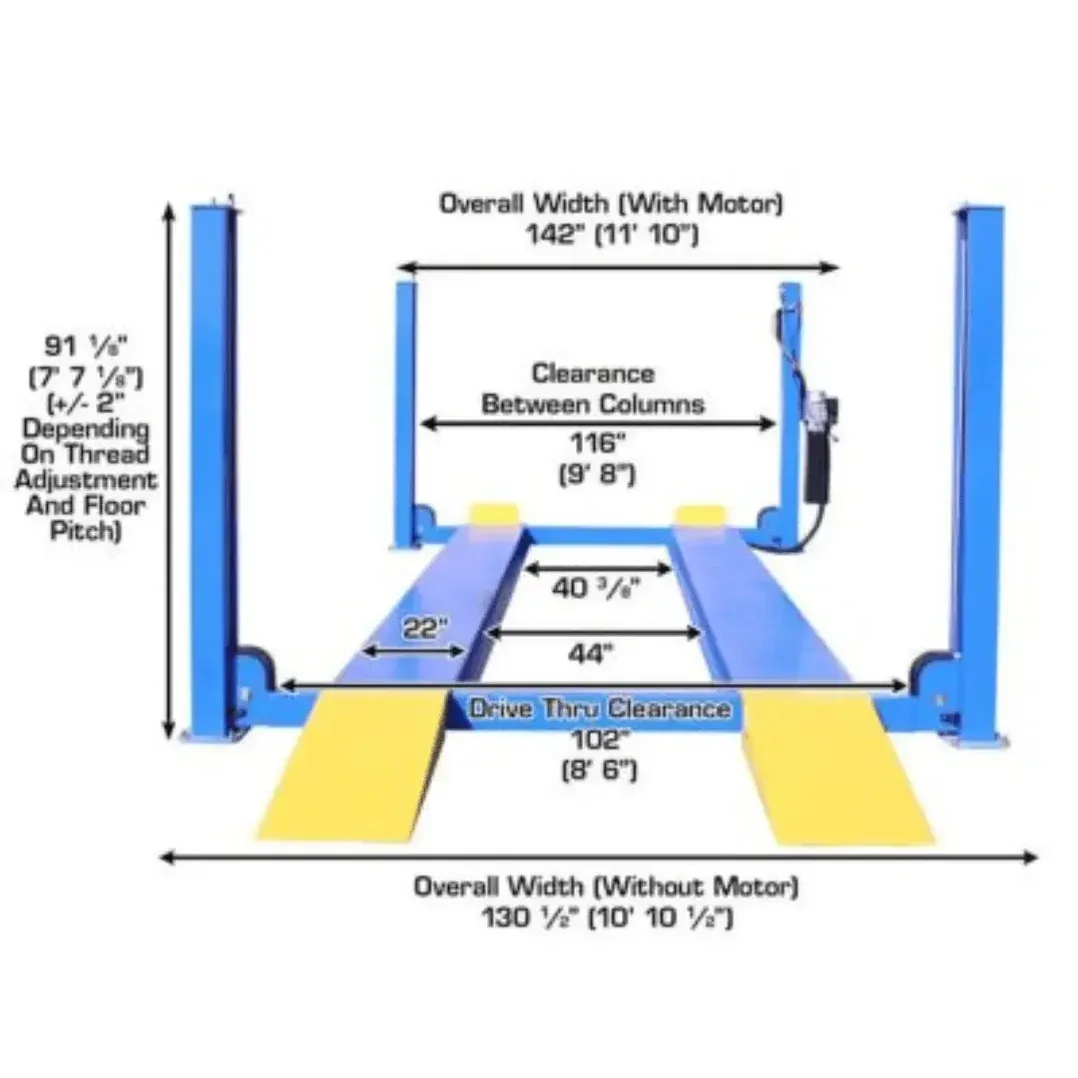

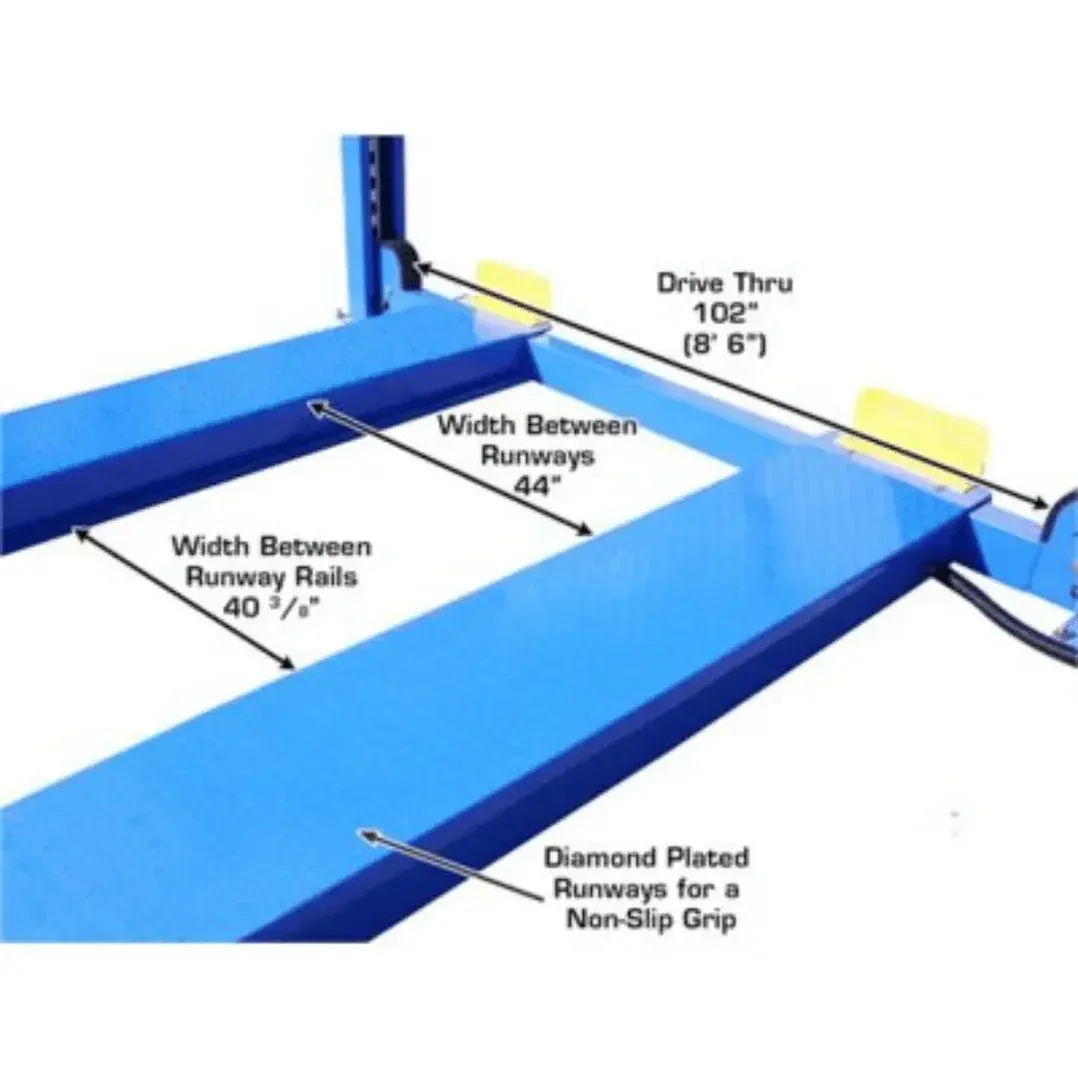

| Drive-thru Width | 8.5 ft (102") |
| Width Between Carriages | 102" |
| Inside Columns | 116" |
| Width Between Columns | 9.5 ft |
| Lifting Capacity | 14,000 lbs |

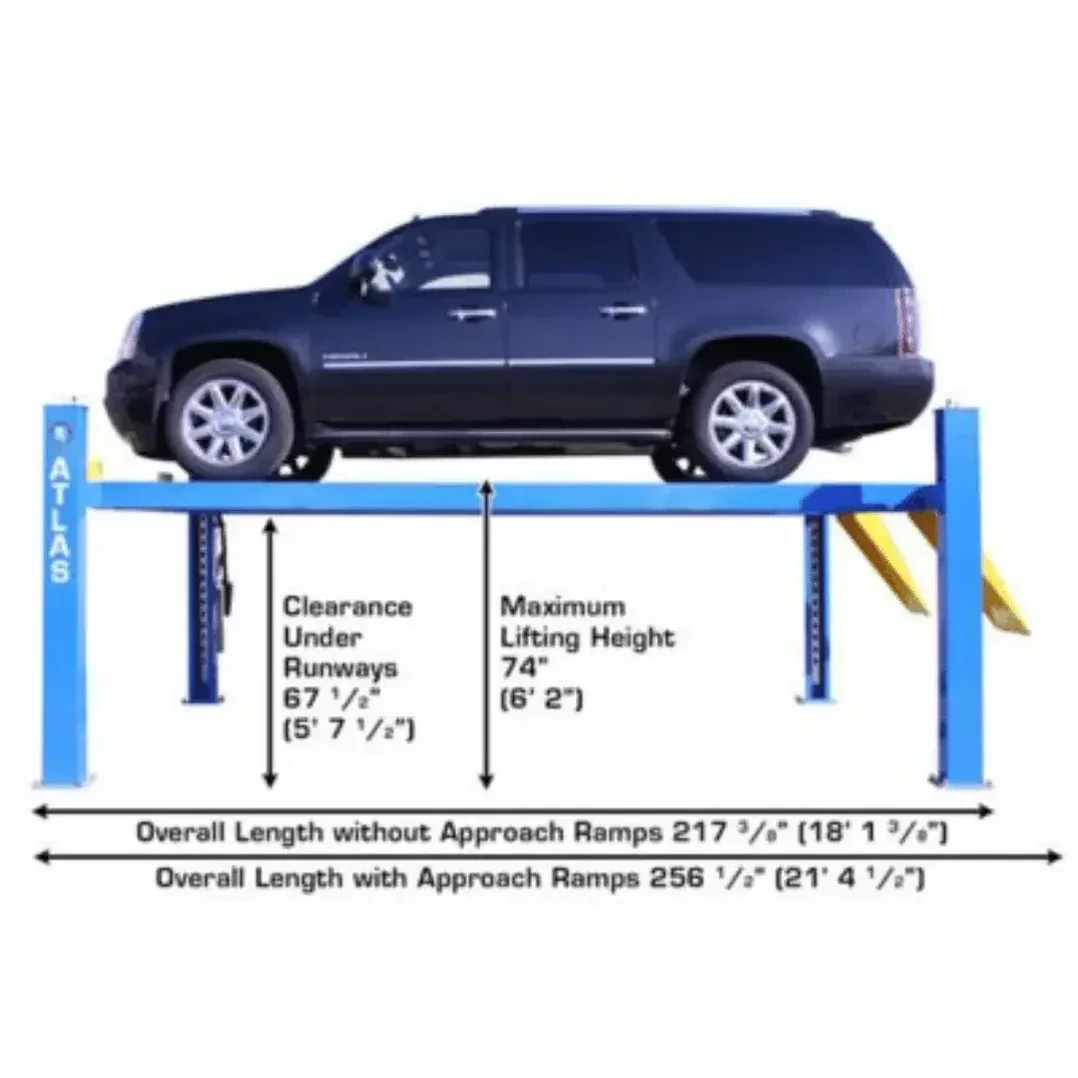

| Lifting Height (Top of Runway) | 6.5 ft (80") |
| Maximum Rise Under Runway | 6 ft (71") |
| Outside Edge of Runways | 7 ft (86") |

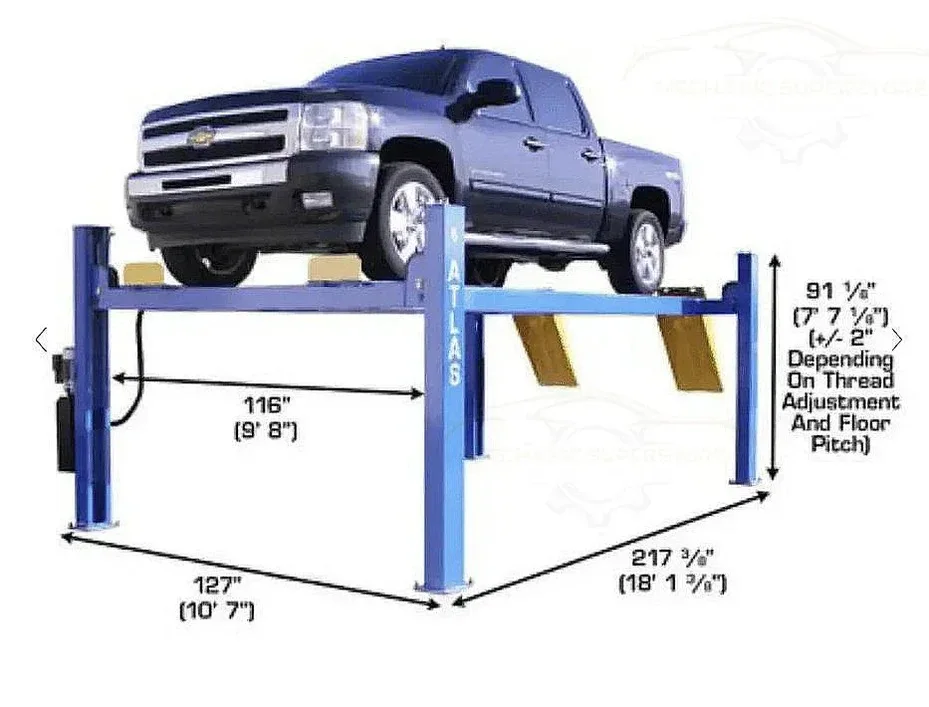

| Overall Length | 21.25 ft (255")* |

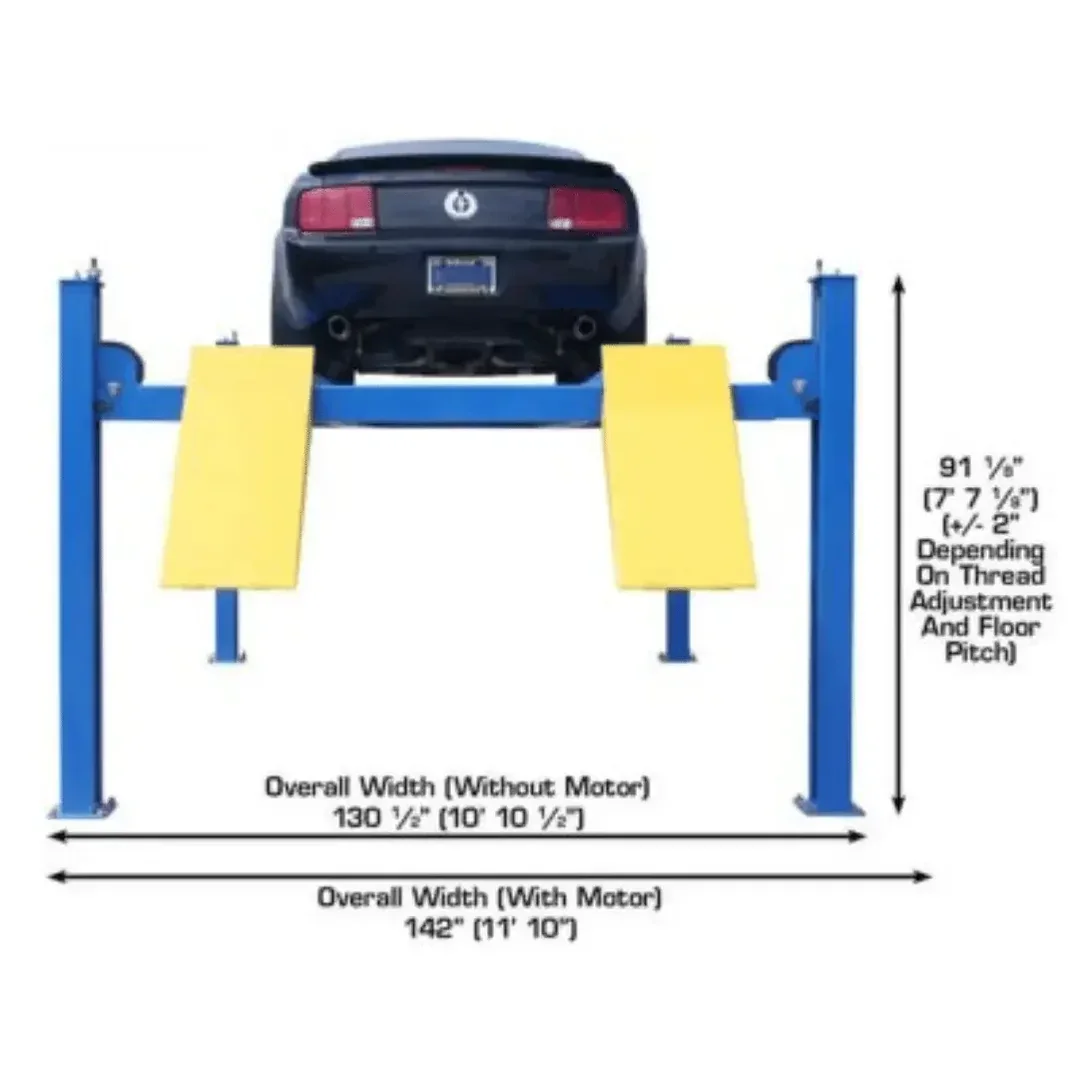

| Overall Width | 11.5 ft (138")* |
| Overall Height | 91" |
| Runway Length | 17.25 ft (208") |
For more detailed information and guidance, you can download the following:
