Atlas BP10000X Commercial Grade Baseplate 10,000 lb. Capacity 2-Post Lift
$ 2,534
$ 3,899
Atlas BP10000X Commercial Grade Baseplate 10,000 lb. Capacity 2-Post Lift
Product Features
- 10,000 lb capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 111 7/8? (9' 3 7/8")
- Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
- Super-Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
- Welded Support Gussets Increase Column Strength
- Automatic Arm Restraints
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Shipping Weight: 1,640 LBS.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
- This part number FRIEGHT PREPAID
Specification
| Model | ATTD-BP10000X |
| Lifting Capacity | 10,000 lbs |
| Motor | 220V |

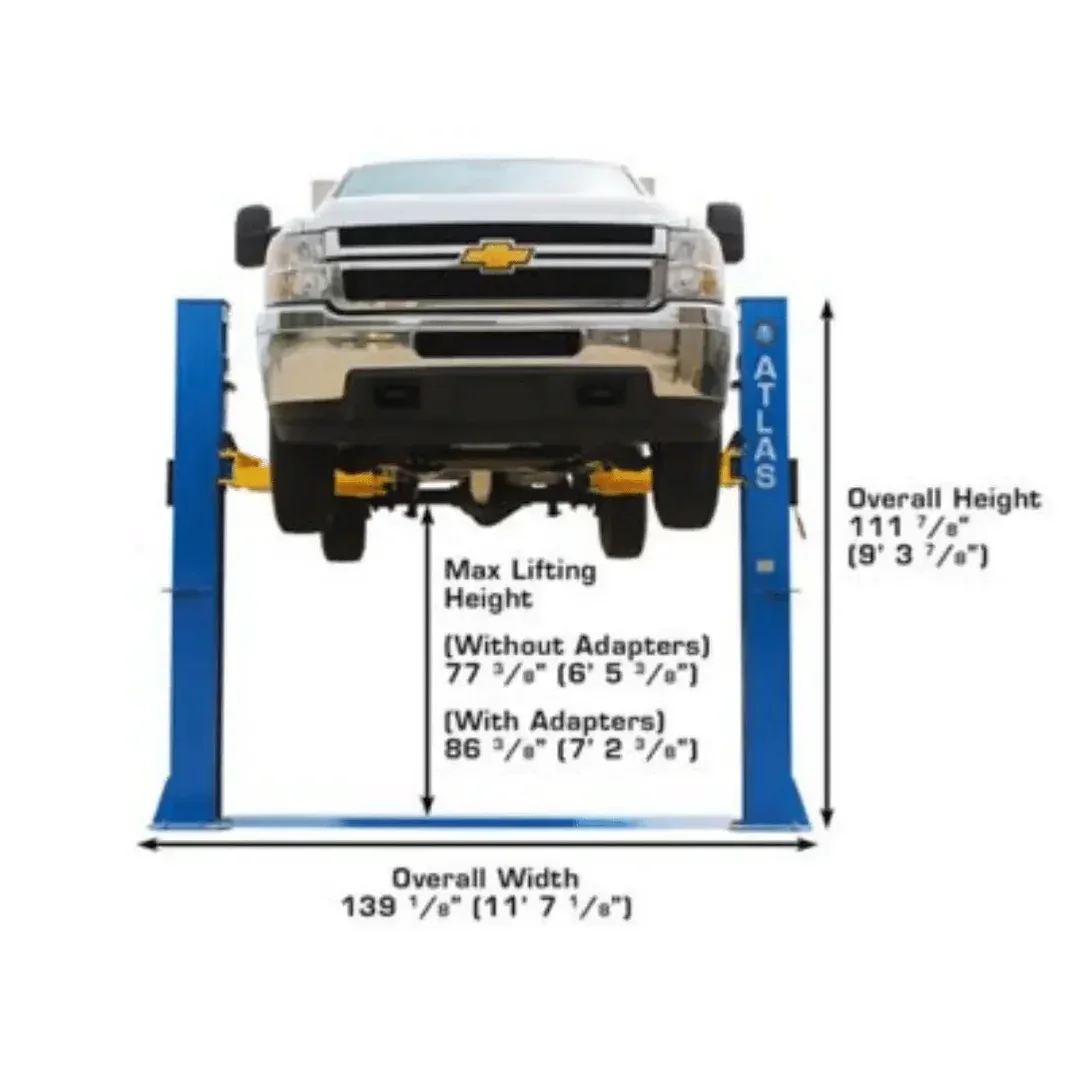

| Overall Height | 111 in |

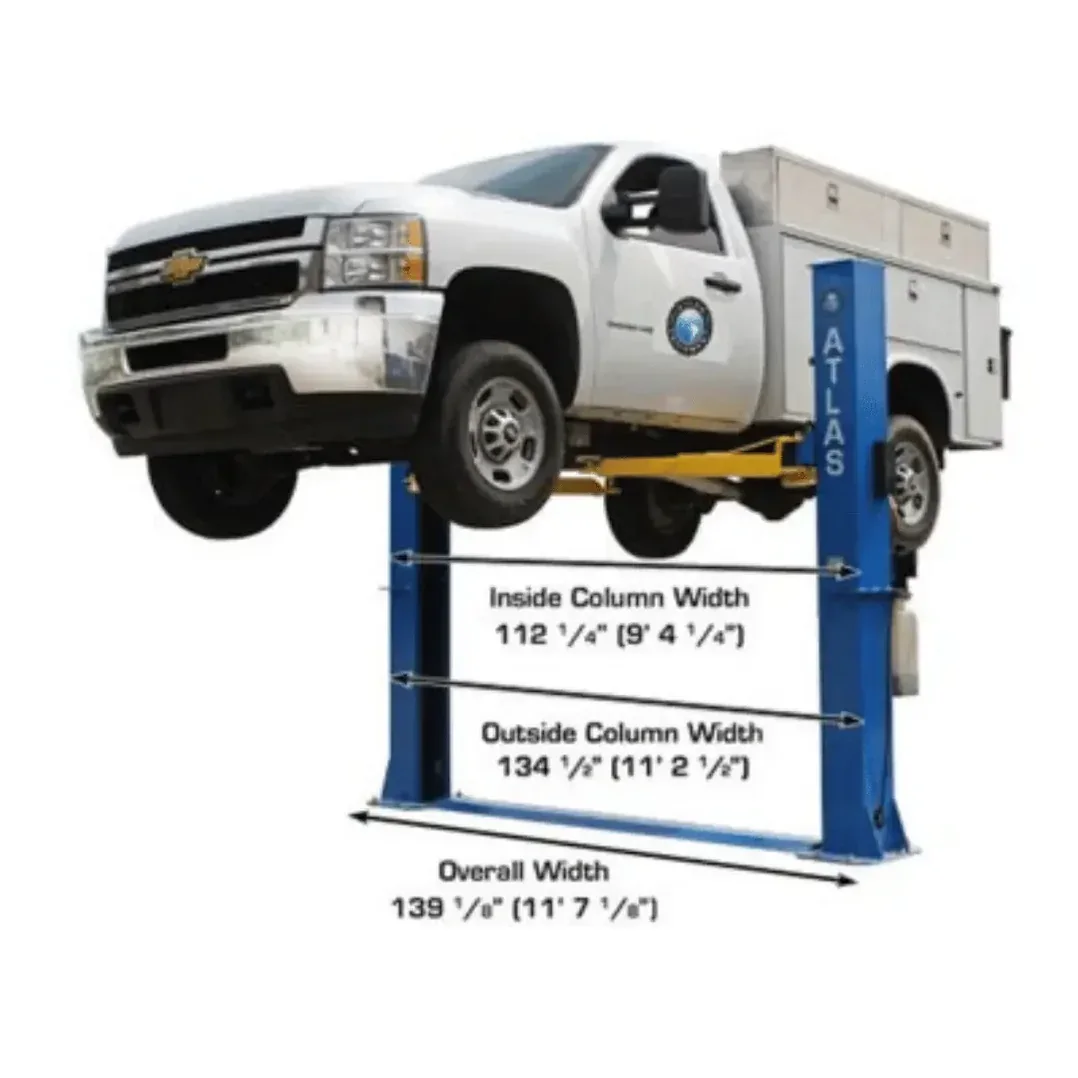

| Overall Width | 139 in (11.5 ft) |
| Overall Weight | 1,640 lbs |

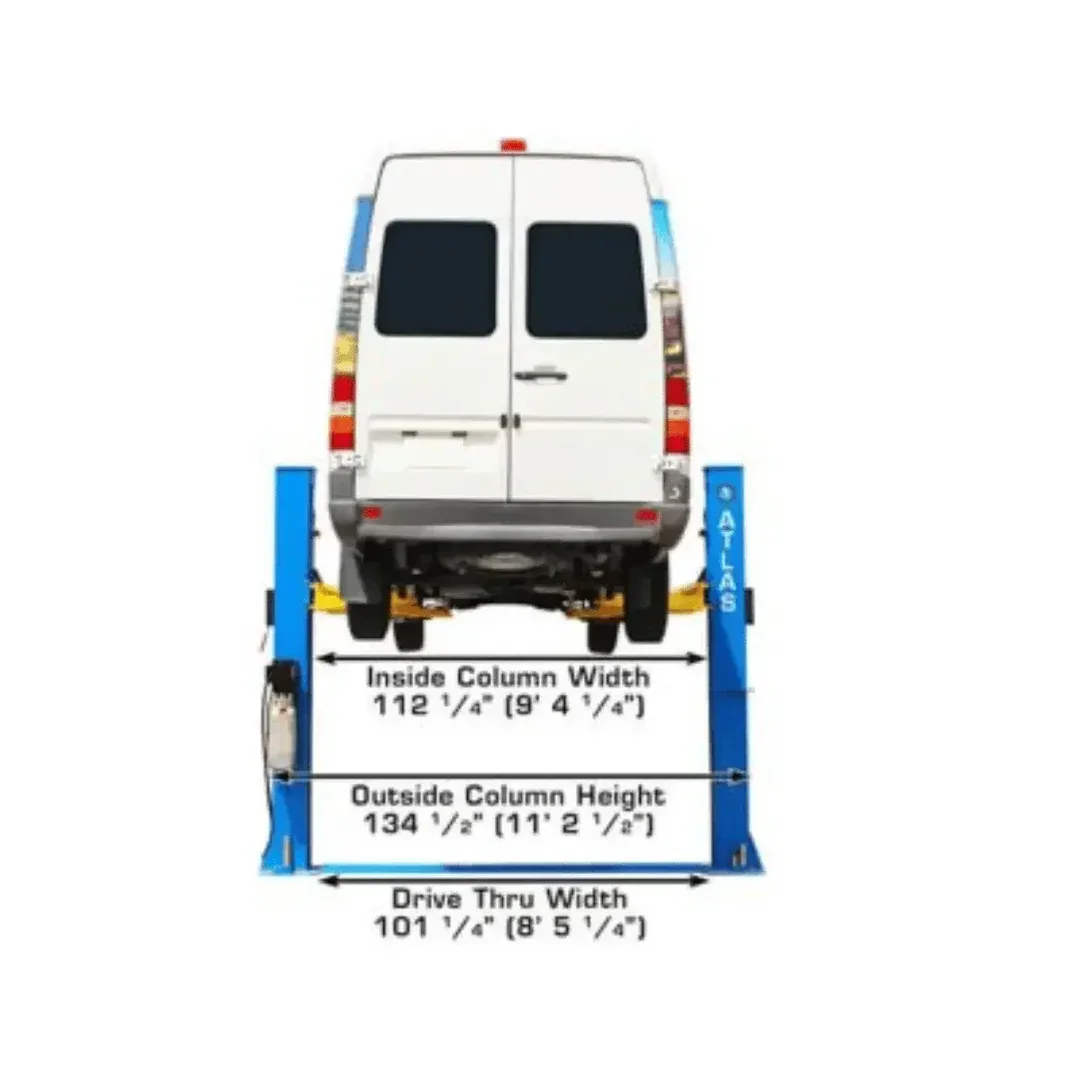

| Width Between Columns | 9.25 ft (112 in) |
| Drive-Thru Width | 8.5 ft (101 in) |
| Inside Columns | 112 in |
| Drive-Thru Between Carriages | 101 in |

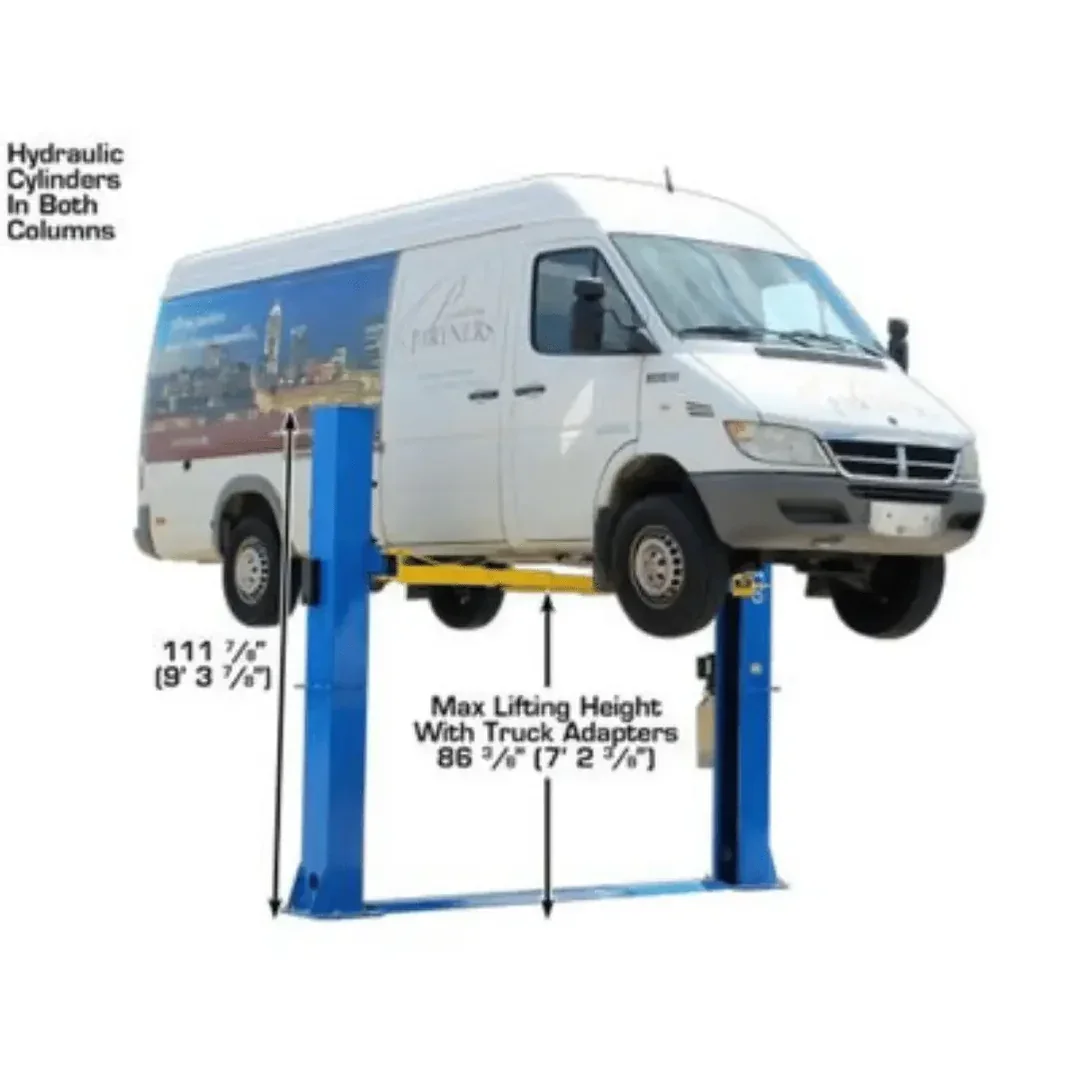

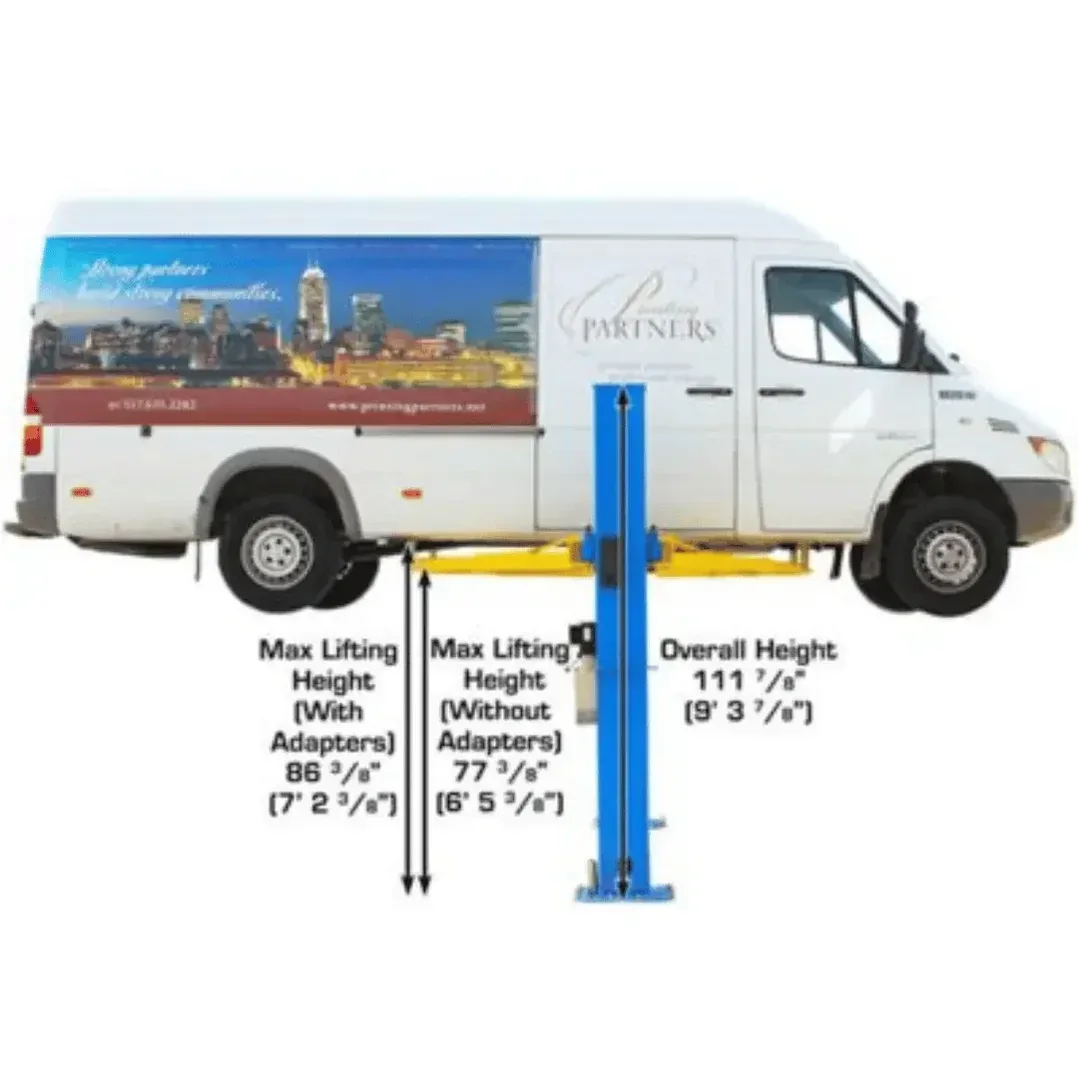

| Maximum Lifting Height (Top of Pads) | 86 in (7.2 ft) |
| Maximum Lifting Height (Top of Arms) | 77 in (6.5 ft) |
| Maximum Rise Under Arms | 77 in |
| Minimum Pad Height | 4 in |
| Minimum Lowered Arm Height | 4 in |
