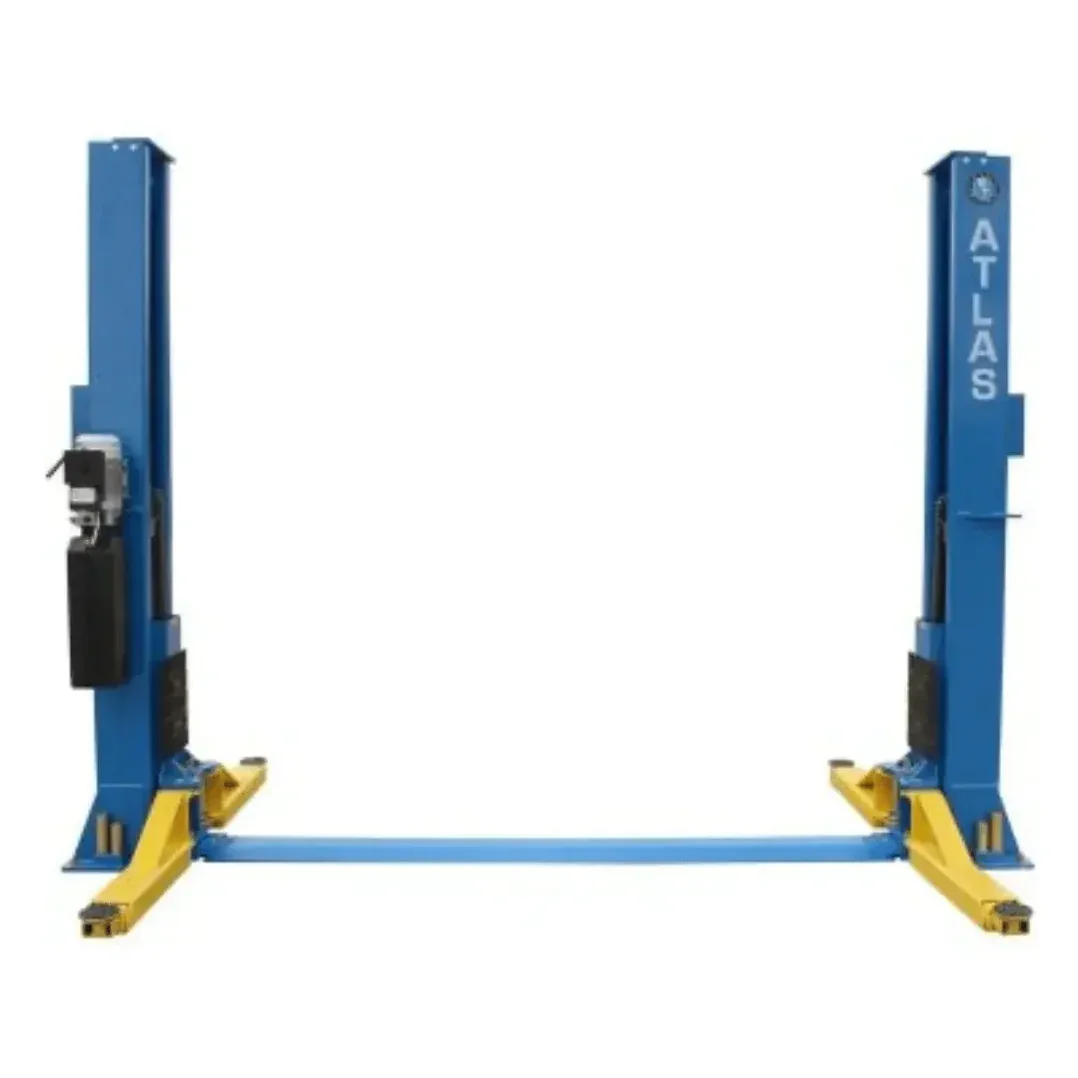

Atlas BP12000X Commercial Grade Baseplate 12,000 lb. Capacity 2 Post Lift
$ 3,449
$ 5,299
Atlas BP12000X Commercial Grade Baseplate 12,000 lb. Capacity 2 Post Lift
- Product Features
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Baseplate, Open-Top Style Lift

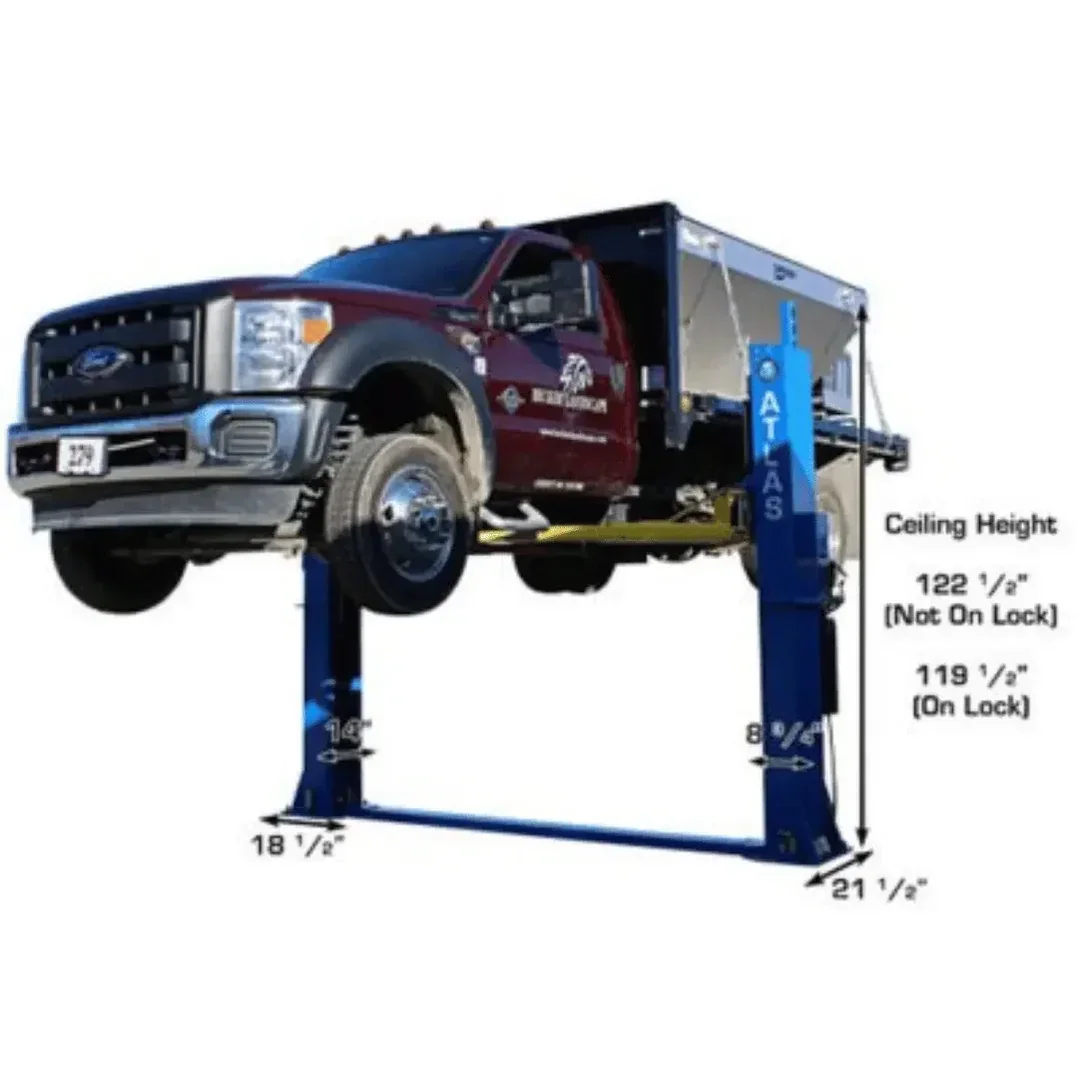

- Overall Height: 122 1/2? (10? 2 1/2?)
- Adjustable Width
- 3-Stage Symmetric Arms
- Automatic Arm Restraints

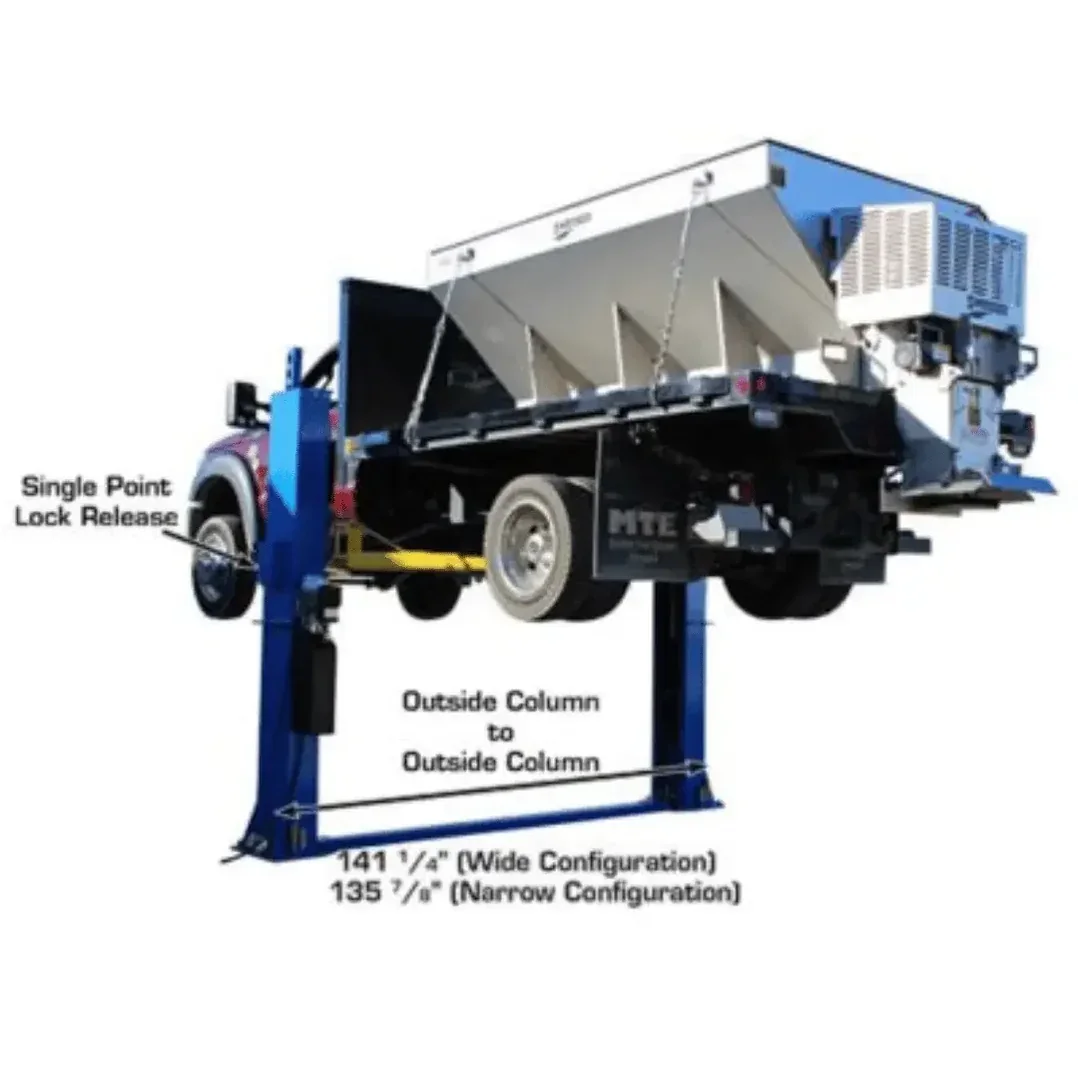

- Single-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Over Cylinders
- Powder Coat Finish
- Free 12 piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 2,130 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
Specification
| Lifting Capacity | 12,000 lbs |
| Drive Thru Width | 9 ft |
| Drive Thru Between Carriage | 103"–109" |
| Inside Columns | 108"–123" |
| Width Between Columns | 10 ft |

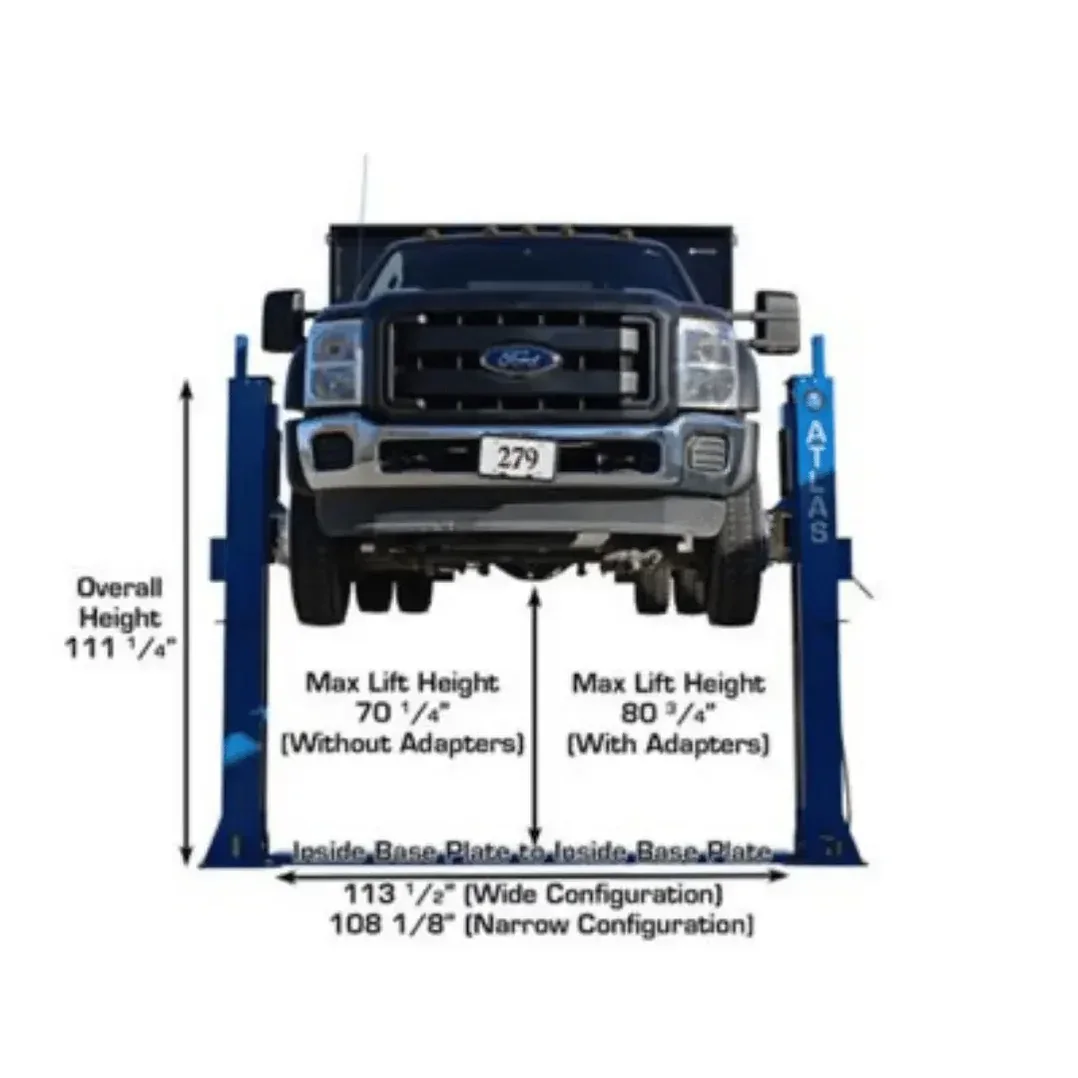

| Lifting Height (Top of Arms) | 6.5 ft |
| Lifting Height (Top of Pad) | 77"–88" |
| Max Rise Under Arms | 7.25 ft / 77" |
| Minimum Lowered Arm Height | 4" |
| Minimum Pad Height | 4" |
| Motor | 220V |

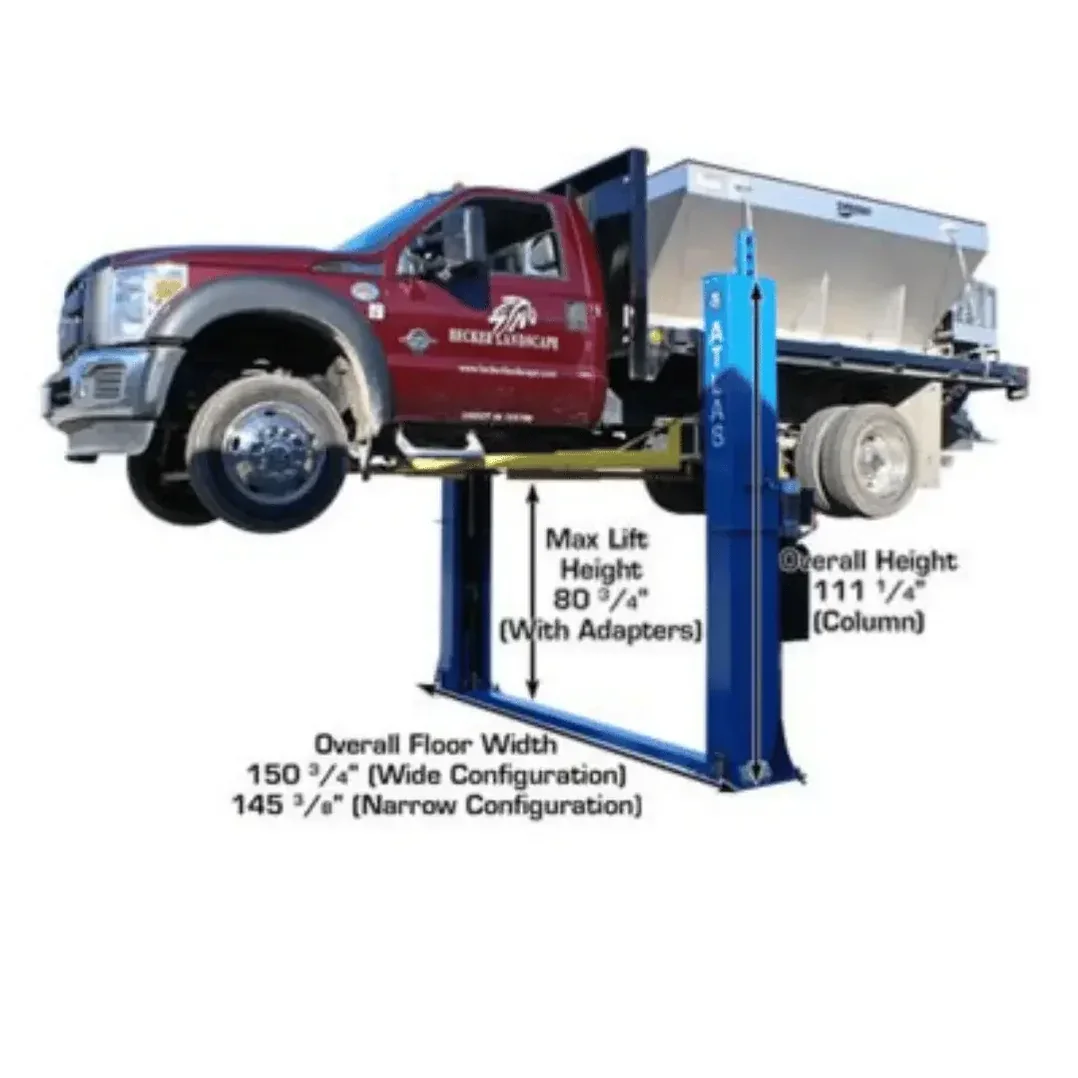

| Overall Width | 12.5 ft / 149"–154" |

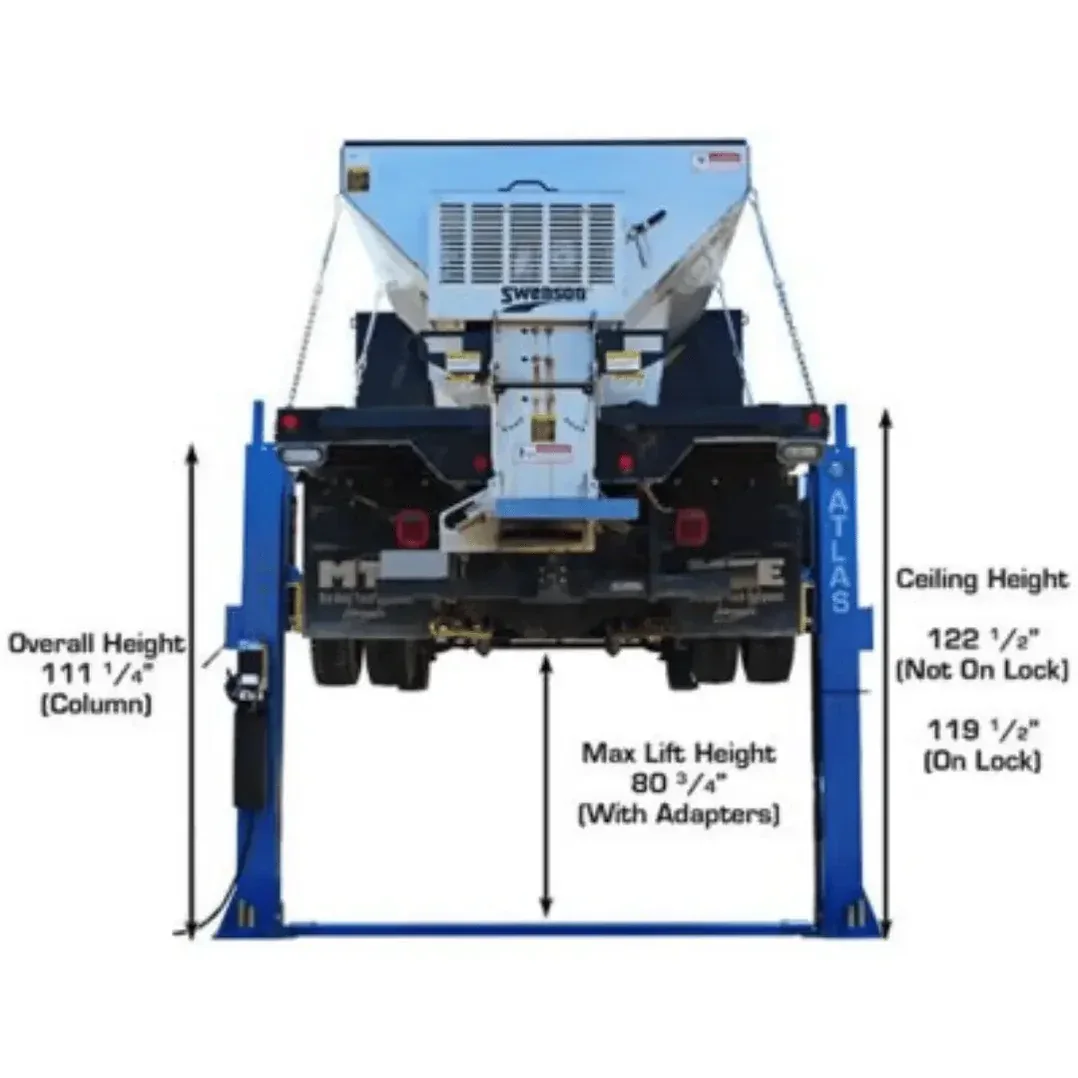

| Overall Height | 122" |
