Description

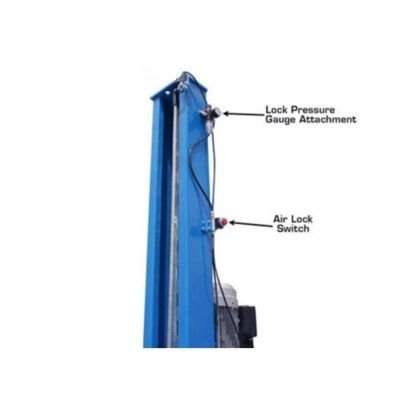

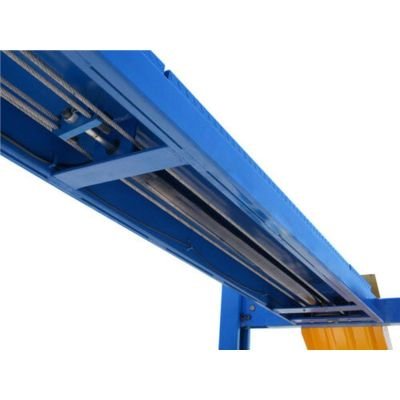

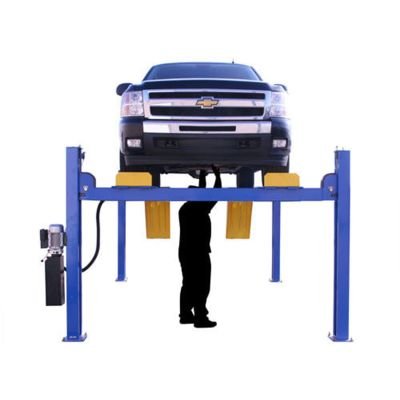

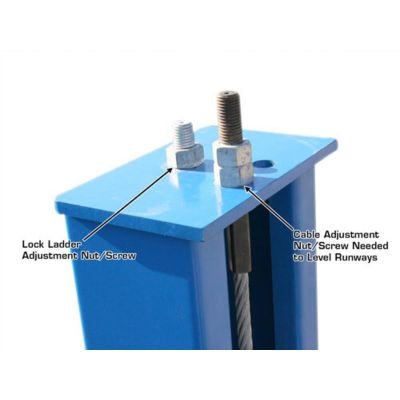

The Atlas® 414 is a 14,000 lb. capacity commercial-grade four-post lift built for professional-grade durability and versatility. With its extra tall, extra wide, and extra long design, this heavy-duty lift accommodates a wide range of vehicles, from trucks to long-wheelbase vans. The diamond-plated runways, powder-coated finish, and lock ladder design ensure safety and performance, while the oversized under-runway hydraulic cylinder and high-strength cable system deliver smooth and balanced lifting. Air-operated single-point lock release (external air required) and compatibility with rolling bridge jacks make this lift a true powerhouse for commercial shops and fleet service centers.
| Product Features |
|---|

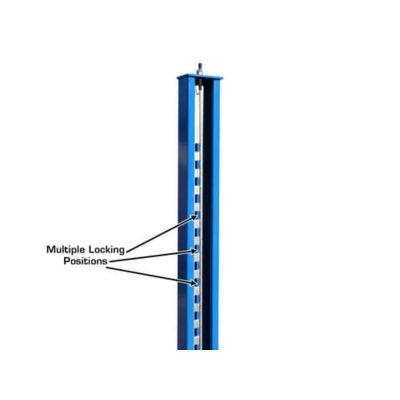

| • 14,000 lb. lifting capacity • Heavy duty commercial-grade design • Extra tall, wide, and long dimensions • Diamond-plated runways • Single-point pneumatic lock release (air supply required) • Durable powder coat finish • Double lock safety system • Mounting hardware and steel ramps included • Runway and drive-off ramp extensions available (sold separately) • Under-runway oversized hydraulic cylinder • High-strength cable lifting system • Compatible with rolling bridge jacks (sold separately) • 220V single-phase power (30 amp breaker required) • 5-year structural / 2-year hydraulic warranty (parts only) |
 |
 |
| Product Specifications | |
|---|---|
| Capacity | 14,000 lb. |
| Lifting Height | 80″ (6′ 8″) |
| Overall Width (w/o Motor) | 130 7/8″ (10′ 10 7/8″) |
| Overall Width (w/ Motor) | 138 7/8″ (11′ 6 7/8″) |
| Overall Length w/ Ramp | 255″ (21′ 3″) |
| Runway Length / Width | 208 5/8″ x 20″ |
| Width Between Runways | 46 7/8″ (w/ Rails 44 3/8″) |
| Clearance Under Runways | 71 1/4″ |
| Drive-Thru Width | 102 1/8″ |
| Max Wheelbase | 197″ (16′ 5″) |

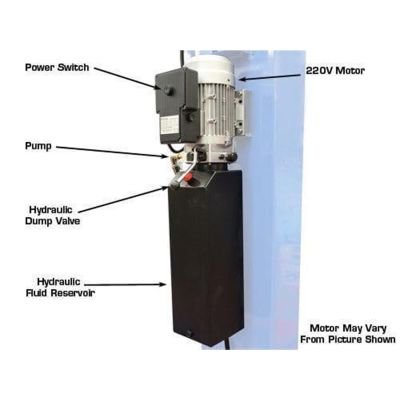

| Motor / Electrical | 220V, 1-phase, 30A |
| Air Requirement | 85–115 PSI (External Supply Required) |

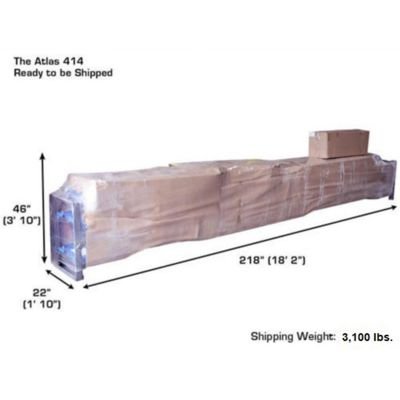

| Shipping Weight | 3,100 lbs. |
