Description

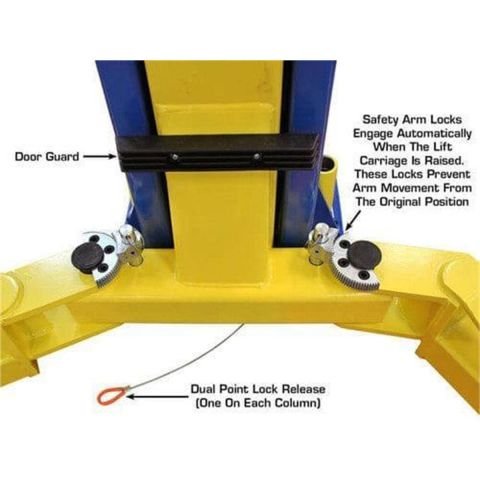

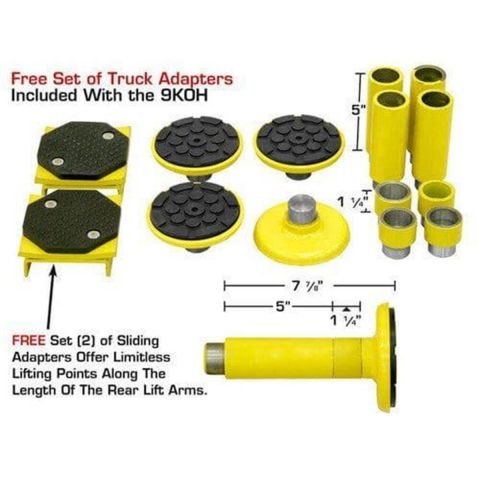

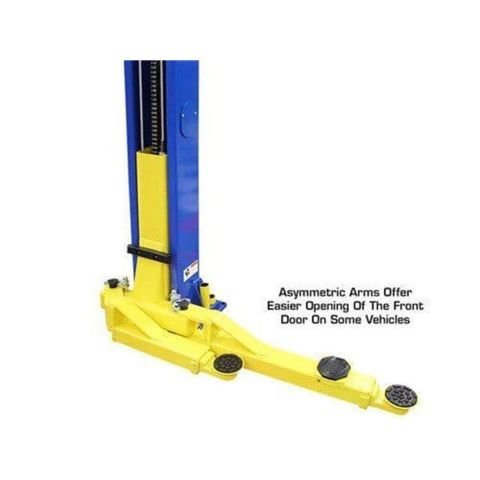

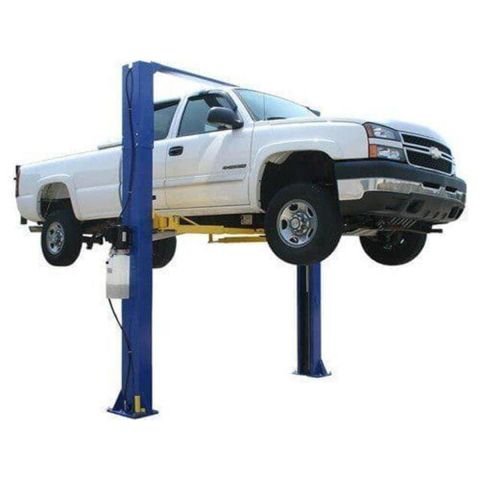

The Atlas® 9KOHX is a light-duty, economy-designed overhead two-post lift built for reliability and versatility. Featuring a clear-floor design and adjustable overall height (11′ 6″ or 11′ 10″), this lift is ideal for standard garages. With dual chain-drive cylinders, automatic arm restraints, and a spring-loaded Secondary Lock System (SLS), it’s the perfect solution for both home garages and small commercial shops. The innovative asymmetric/symmetric arm design allows flexibility when servicing low-profile vehicles or heavier trucks, and the low lift pad height accommodates a wide range of vehicles. The 9KOHX also includes a free truck adapter set and sliding arm adapters for added value and convenience.
| Product Features |
| 9,000 lb. Capacity |
| Overhead, Clear-Floor Design |
| Product Specifications |
| Capacity |
9,000 LB. |

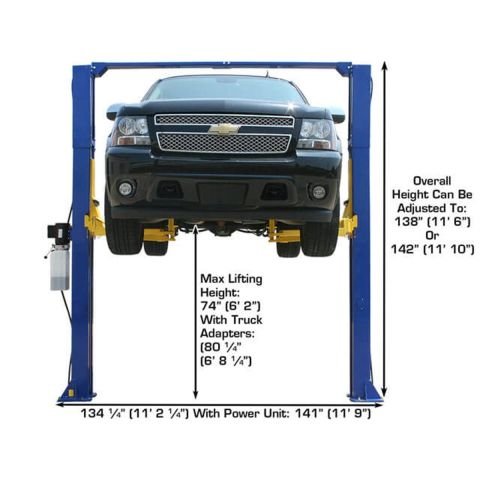

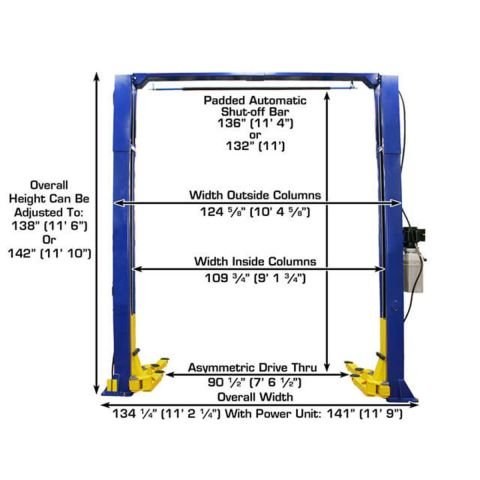

| Overall Floor Width |
134 1/2″ (11′ 2 1/2″) |
| Outside Column to Outside Column |
124 7/8″ (10′ 4 7/8″) |

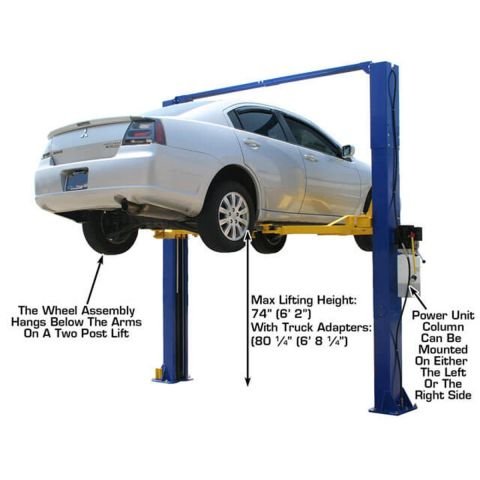

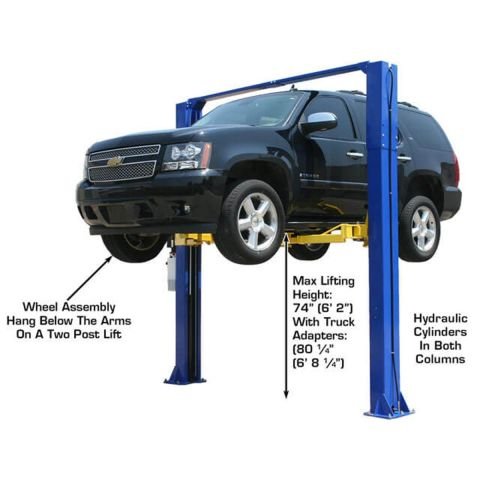

| Max Lift Height (Without Adapters) |
74 1/2″ |
| Max Lift Height (With Adapters) |
81″ |

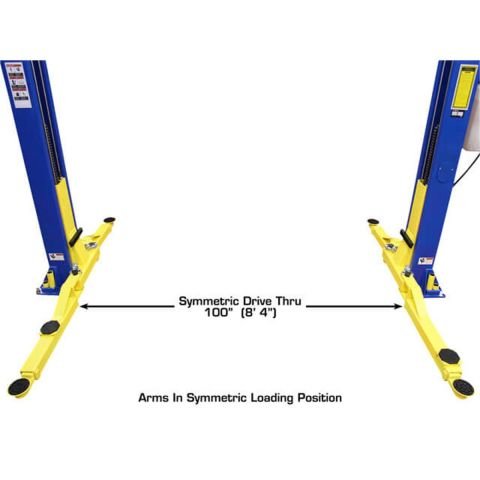

| Drive Thru Clearance |
100″ (Symmetric) / 90.5″ (Asymmetric) |
| Motor / Electrical |
220V Single Phase, 30 Amp Breaker Recommended |
