Description

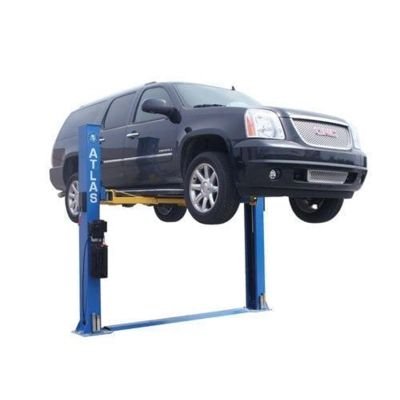

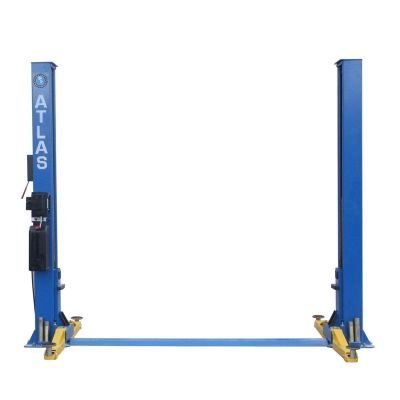

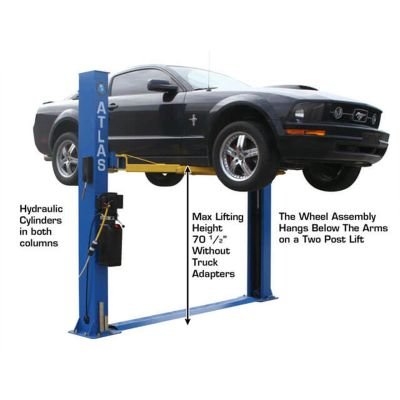

The Atlas® BP8000 is a hobbyist-grade baseplate two-post lift designed specifically for low-ceiling garages. With a total column height of just 108 inches, it’s the ideal solution for residential or light-duty commercial applications where space is limited. Despite its compact size, the BP8000 includes premium features found on more expensive models—such as a single-point lock release, Super-symmetric arm design, and dual hydraulic chain-drive cylinders for stable lifting performance.
Its 8,000 lb. capacity is perfect for lifting most cars, SUVs, and light-duty trucks, while the included 12-piece truck adapter set makes servicing larger vehicles easier and safer. The BP8000 also features automatic arm restraints, a dual safety lock system, and a rugged powder coat finish for durability. If you’re looking for a reliable lift that fits in a standard garage, the BP8000 delivers exceptional value and versatility.
| Product Features |
| 8,000 lb. Capacity |
| Designed for Low Ceiling Garages |

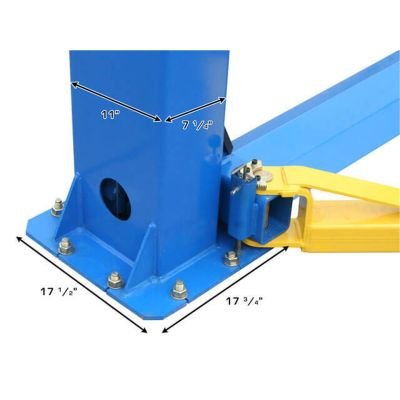

| Baseplate, Open-Top Style |

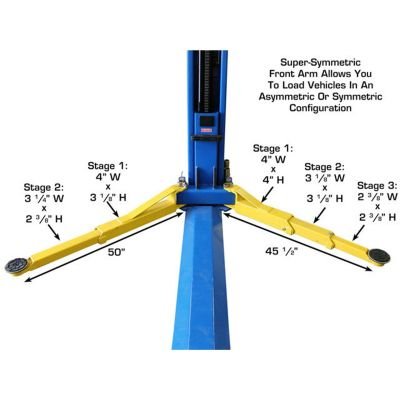

| 3-Stage Front / 2-Stage Rear Arms |

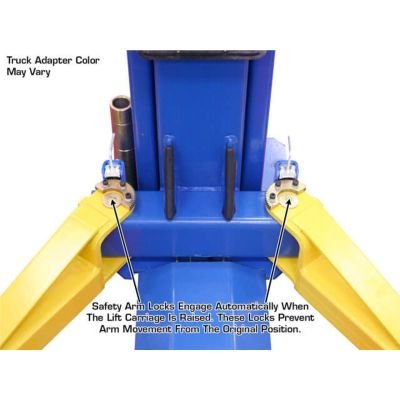

| Automatic Arm Restraints |
| Single-Point Lock Release |
| Double Safety Lock System |

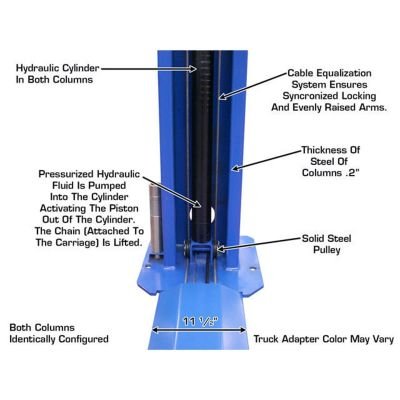

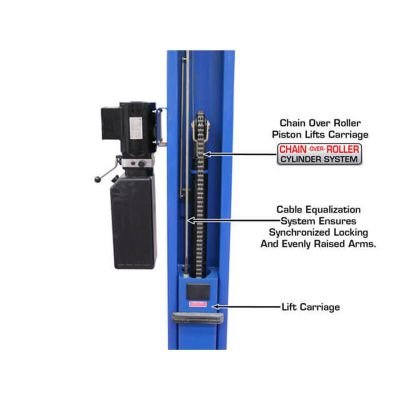

| Dual Hydraulic Chain-Drive Cylinders |

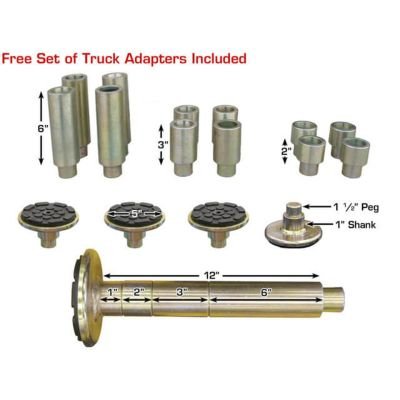

| Includes 12-Piece Truck Adapter Set |
| Mounting Hardware Included |
| Powder Coat Finish |
| 5 yr Structural / 2 yr Hydraulic Warranty |
| Product Specifications |
| Capacity |
8,000 LB. |
| Outside Column to Column |
124″ (10′ 4″) |
| Maximum Lift Height (With Adapters) |
86 1/2″ |
| Inside Column Height |
109 1/8″ (9′ 1 1/8″) |
| Drive Thru Clearance |
99″ (8′ 3″) |
| Oil Requirement |
3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight |
1,300 LBS. |
