Description

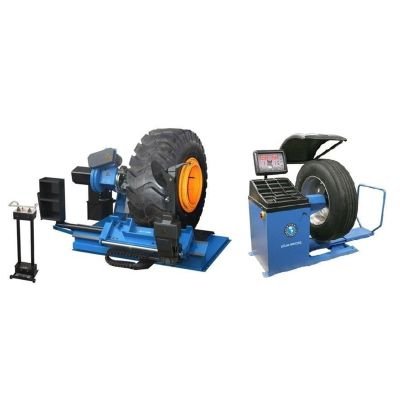

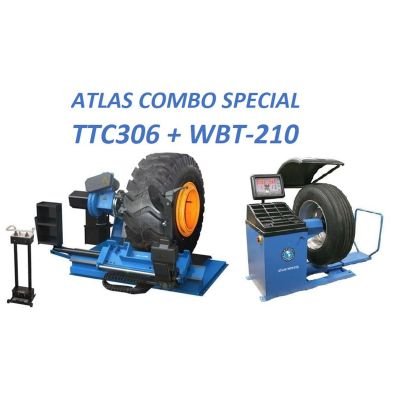

The Atlas® TC306 Tire Changer + WBT210 Wheel Balancer Combo is the ultimate heavy-duty package for truck, bus, agricultural, and off-road tire service. This combination is designed for professional shops and fleets requiring maximum capacity, reliability, and efficiency. The TC306 truck tire changer features a 2-speed hydraulic chuck, automatic bead tool and carriage positioning, and the ability to handle massive tires up to 98″ in diameter and 53″ wide. Paired with the WBT210 heavy-duty wheel balancer, this combo can handle everything from passenger car rims to 300 lb. semi-truck tires with exceptional accuracy and stability. Both machines are built for long-lasting performance in high-volume shop environments.
| Atlas® TC306 Tire Changer – Product Features |
|---|
| 2-Speed Hydraulic Chuck with 5 Rim Locking Positions |
| Automatic movement of Bead Tool, Carriage, & Chuck Arm |
| Handles rims from 14″ to 56″ and tires over 97″ in diameter |
| Accommodates tires up to 53″ wide |
| Electric/Hydraulic Self-Centering Four Jaw Chuck |
| Heavy-duty Mount/Demount Head and Bead Breaker |
| Optional wired mobile control unit available |
| Includes alloy rim adapters, plastic protectors, and clamping extensions |
| Atlas® WBT210 Wheel Balancer – Product Features |
|---|
| Balances car, light truck, and heavy-duty truck wheels up to 440 lbs |
| Includes car/light truck and truck/bus cone sets |
| Automatic start/stop when hood is lowered/raised |
| Static and dynamic balancing modes with rapid optimization (OPT) |
| Self-diagnosing and self-calibrating for easy maintenance |
| Pneumatic wheel lift for safe heavy-wheel handling |
| Includes plastic quick-release nut, steel wing nut, pliers, and caliper |
| Atlas® TC306 Tire Changer – Product Specifications | |
|---|---|
| Max Tire Diameter | 98″ (8′ 2″) |
| Max Tire Width | 53″ |
| Rim Clamping Range | 14″ – 46″ (47″ – 56″ w/ extensions) |
| Max Wheel Weight | 3,968 lbs |
| Bead Breaker Force | 5,930 lbs |
| Hydraulic Motor Power | 3 HP / 220V / 3-Phase |
| Chuck Motor Power | 3.5-4 HP / 220V / 3-Phase |
| Shipping Weight | 2,260 lbs |
| Atlas® WBT210 Wheel Balancer – Product Specifications | |
|---|---|
| Max Tire Diameter | 47″ |
| Rim Size Range (Cars & Light Trucks) | 10″ – 32″ |
| Rim Width | 1.5″ – 20″ |
| Max Wheel Weight | 440 lbs |
| Balancing Speed | 150 rpm (Car) / 90 rpm (Truck) |
| Accuracy | 1g (Car) / 10g (Truck) |
| Power Supply | 220V 1-Phase |
| Shipping Weight | 725 lbs |
