Description

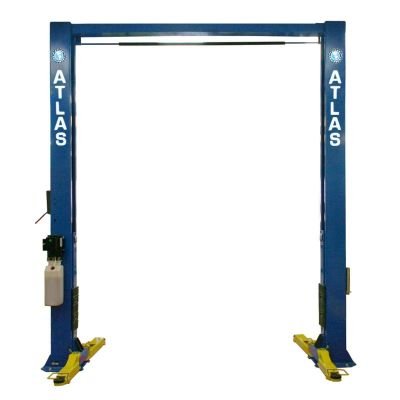

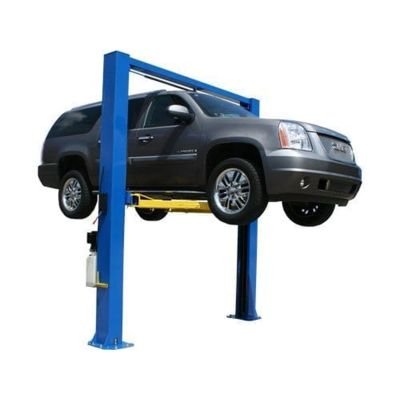

The Atlas® OHX10000X is a commercial-grade overhead two-post lift built for lifting a wide variety of vehicles, including long wheelbase trucks and vans. With a robust 10,000 lb. lifting capacity, this lift is ideal for professional repair shops and homeowners who want premium performance and durability. Its extra-tall and extra-wide design makes it especially suitable for high-roof commercial vehicles, ladder trucks, or operators who need additional workspace underneath. The single-piece column construction and extended-height direct-drive cylinders allow for higher lifting than many standard two-post lifts. A single-point lock release and automatic arm restraints provide convenience and safety, while the padded shut-off bar prevents damage to vehicle roofs. The OHX10000X comes complete with a 12-piece truck adapter set and all necessary mounting hardware, making it a true value for serious mechanics and garage owners alike.
| Product Features |
| 10,000 lb. Capacity |
| Commercial Grade Construction |
| Extra Tall & Extra Wide Design |
| Symmetric Arm Configuration |

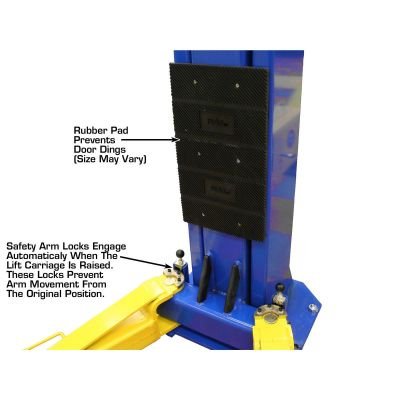

| Automatic Arm Restraints |

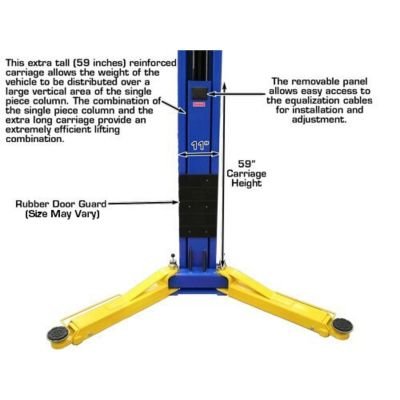

| Single Piece Columns for Maximum Strength |

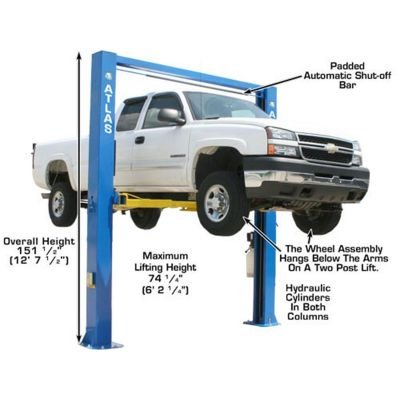

| “Padded” Shut-Off Bar Prevents Overlifting |

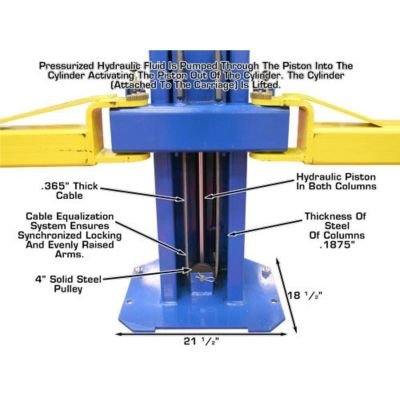

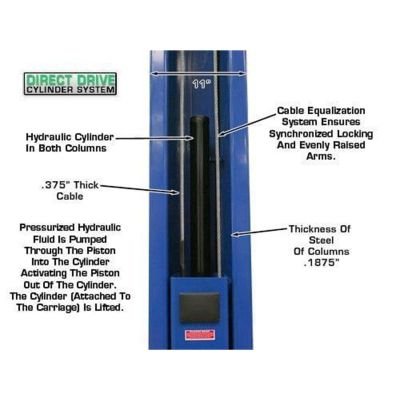

| Dual Direct-Drive Hydraulic Cylinders |

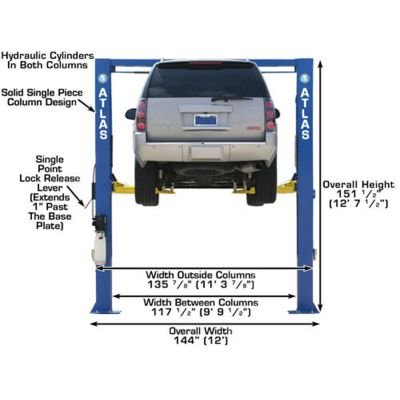

| Single Point Lock Release |

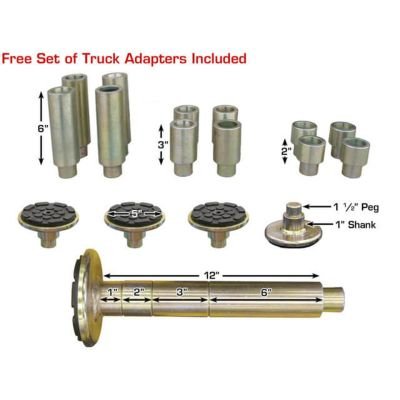

| Free 12-Piece Truck Adapter Set |
| Powder Coat Finish for Long-Term Durability |
| Mounting Hardware Included |
| 5-Year Structural / 2-Year Hydraulic Warranty (Parts Only) |
| Product Specifications |
| Capacity |
10,000 LB. |

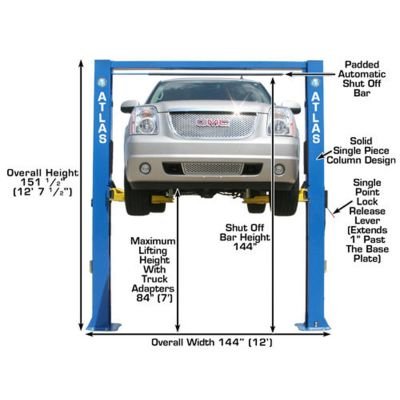

| Overall Height |
152″ (12′ 8″) |
| Overall Floor Width |
144 3/8″ (12′ 3/8″) |
| Outside Column to Column |
136″ (11′ 4″) |
| Drive Thru Width |
106 7/8″ (8′ 10 7/8″) |

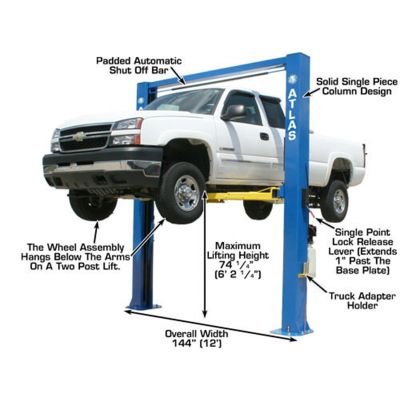

| Max Lift Height (w/ Adapters) |
85 3/4″ |
| Min Arm Height |
4 1/2″ |
| Motor / Electrical |
220V Single Phase (30A Breaker Recommended) |
| Oil Requirement |
3–5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights |
4 Each: 2″, 3″, 6″ |

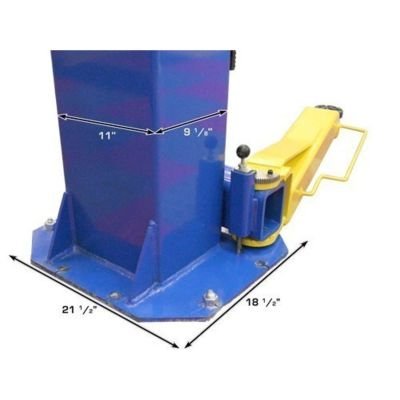

| Column Size |
9 1/8″ x 11″ |

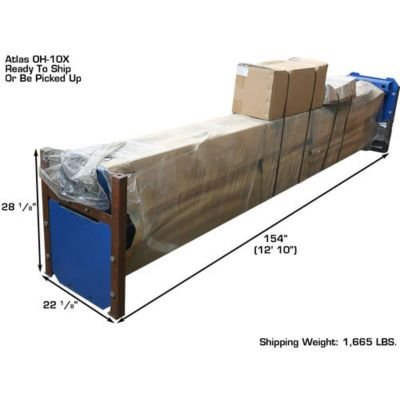

| Shipping Weight |
1,665 lbs. |
