Description

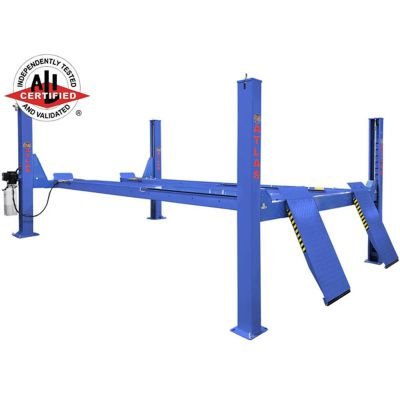

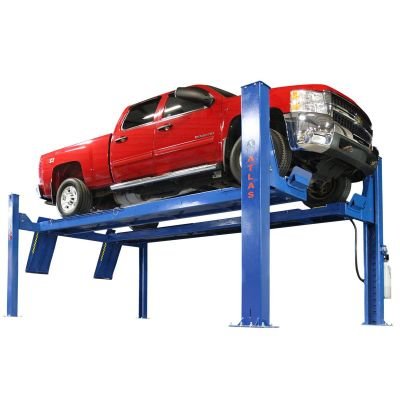

The Atlas® Platinum PVL140F-EXT is a heavy-duty, ALI Certified four-post alignment lift designed for professional shops handling everything from standard vehicles to commercial trucks. This extended-length, open-front design provides unmatched access to the underside of vehicles, making alignments and undercarriage work more efficient. Built with commercial-grade steel, it features a premium ALLY Hydraulic power unit and integrated slip plates and turntables for precise wheel alignments. The PVL140F-EXT sets the standard for high-capacity alignment lifts, combining durability, functionality, and easy operation with enhanced safety features.
| Product Features |
| ALI Certified Lift |
| 14,000 lb. Lifting Capacity |
| Open-Front Design for Easier Undercar Access |

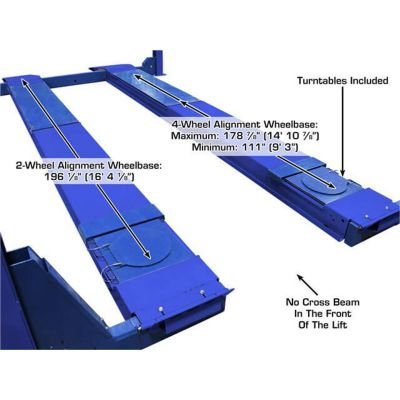

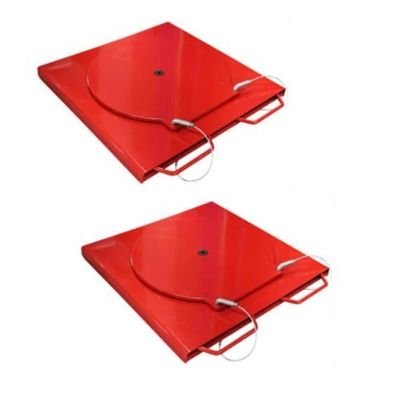

| Built-In Slip Plates & Heavy Duty Turntables |
| Extra Long Runways |
| Adjustable Lock Ladder System |
| Double Lock Safety System |

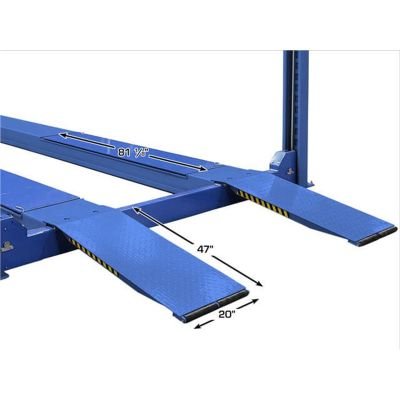

| Steel Approach Ramps Included |

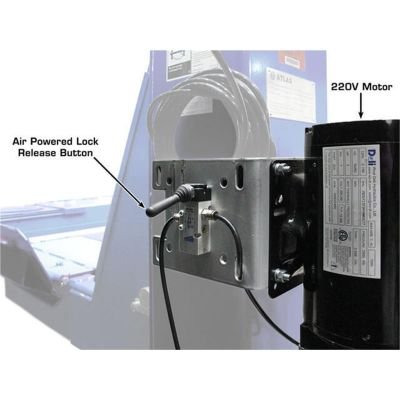

| Air Operated Single Point Lock Release |
| Powder Coat Finish for Long-Term Durability |
| Premium ALLY Hydraulic AL3000 Power Unit |
| 220V Single Phase Electric Motor (30A Breaker Required) |
| 5-Year Structural / 2-Year Hydraulic / 2-Year Power Unit Warranty |
 |
 |
| Product Specifications |
| Capacity |
14,000 lb. |
| Lifting Height |
73 1/4″ (6′ 1 1/4″) |
| Overall Width (No Motor) |
140 1/8″ (11′ 8 1/8″) |

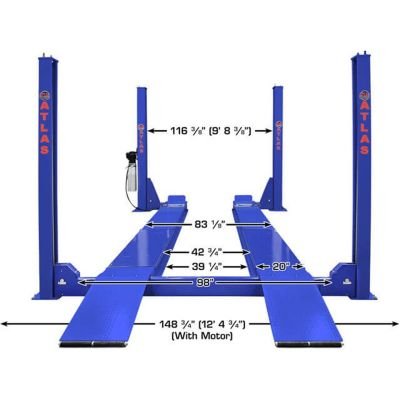

| Overall Width (With Motor) |
148 3/4″ (12′ 4 3/4″) |
| Overall Length (With Ramp) |
272 1/8″ (22′ 8 1/8″) |
| Length Between Columns |
207″ (17′ 3″) |
| Runway Length |
223 1/2″ (18′ 7 1/2″) |
| Runway Width |
20″ |
| Width Between Runways |
42 3/4″ (w/ Rail 39 1/4″) |
| Clearance Between Columns |
116 3/8″ (9′ 8 3/8″) |

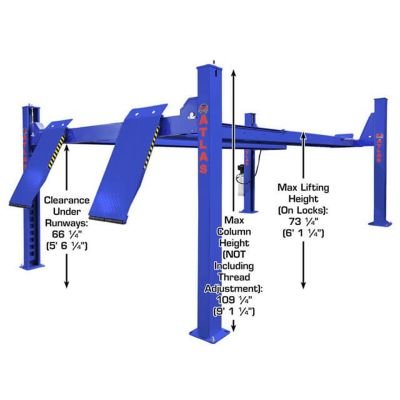

| Clearance Under Runways |
66 1/4″ (5′ 6 1/4″) |

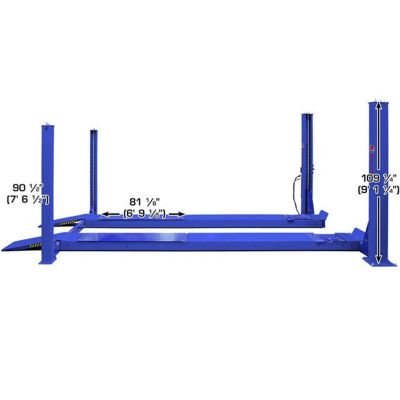

| Height of Columns |
92 1/2″ Rear / 109 1/4″ Front |
| Drive Thru Clearance |
94 1/2″ (7′ 10 1/2″) |
| Max Wheel Base |
203″ (16′ 11″) |
| Air Requirement |
85-115 PSI (External Air Supply Required) |
| Electrical Requirement |
220V Single Phase (30A Breaker Recommended) |
| Oil Requirement |
3-5 Gallons AW32 or AW46 (Not Included) |

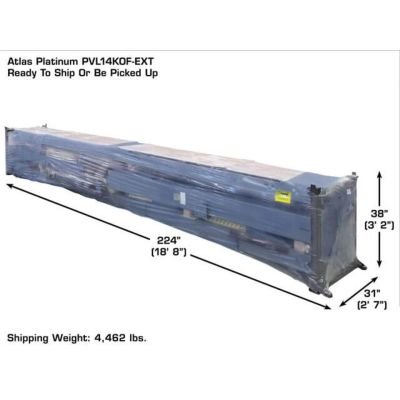

| Shipping Weight |
4,462 lbs. |
| Concrete Requirement |
Minimum 6″ @ 3,000 PSI |
