Description

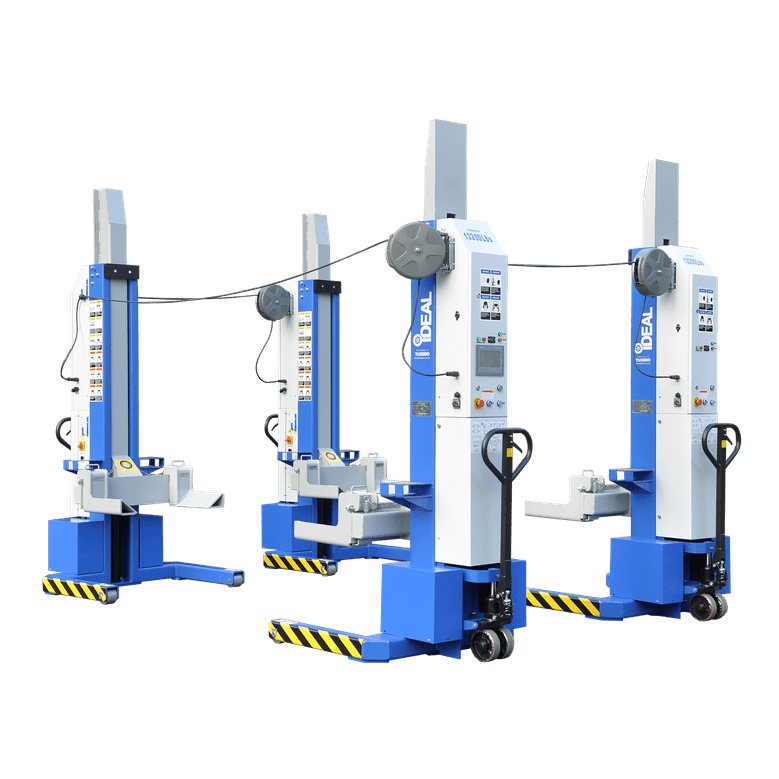

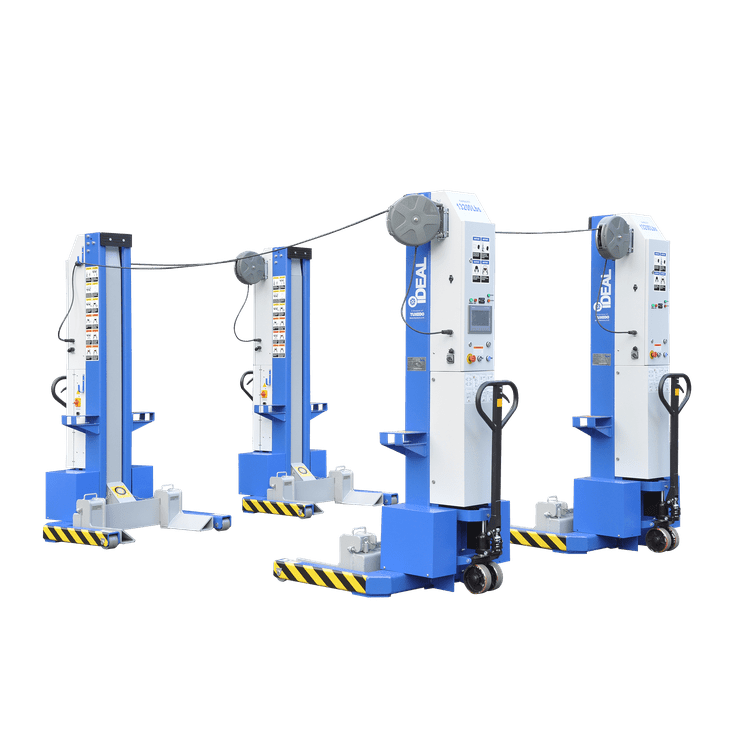

iDEAL Wheel Engaging Mobile Column Set (Set of 4)
The MSC-13K-B can be purchased in sets of 2, 4, or 6 columns with a total capacity of up to 78,000lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift.
The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.
Features
- Up To 78,000 Lbs. Capacity
- Easy To Use Control Panel
- Operable From Any Column
- Adjustable Fork Accommodates Many Wheel Sizes
- Direct Drive Hydraulic Cylinder
- Independent Mechanical Locking System
- Battery Operated With Onboard Charging System
- Easily Moved For Use In Multiple Bays
- Small Footprint Allows For Out Of The Way Storage
- Available In Two, Four And Six Column Configuration
- Optional Accessories For Expanded
- Service Operations
Specifications
| MSC-13K-B-452 | |
| Column Configurations | 4 Column |
| Capacity | 52,000 lbs. |
| Charging Voltage |
100-140VAC, 60HX, Single Phase
|
| Lifting Height | 67.1″ |
| Column Heights Min/Max |
Min. 88.6″ / Max 155.5″
|
| Column Width | 44.1″ |
| Fork Adjustable Range | 6.3″ 22″ |
| Fork Length | 14″ |
| Fork to Column Clearance | 9.3″ |
| Rise Time | 75 Seconds |
| Max Distance between Columns | 32.8′ |
| Min. Concrete Surface Strength | 3,000PSI |
| Set-Up / Operation | Indoors |
| *Battery Type (Recommended) |
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105
|
|
*Batteries Not Included
|
Ship Weight 1,210 lbs per Column
Warranty
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
