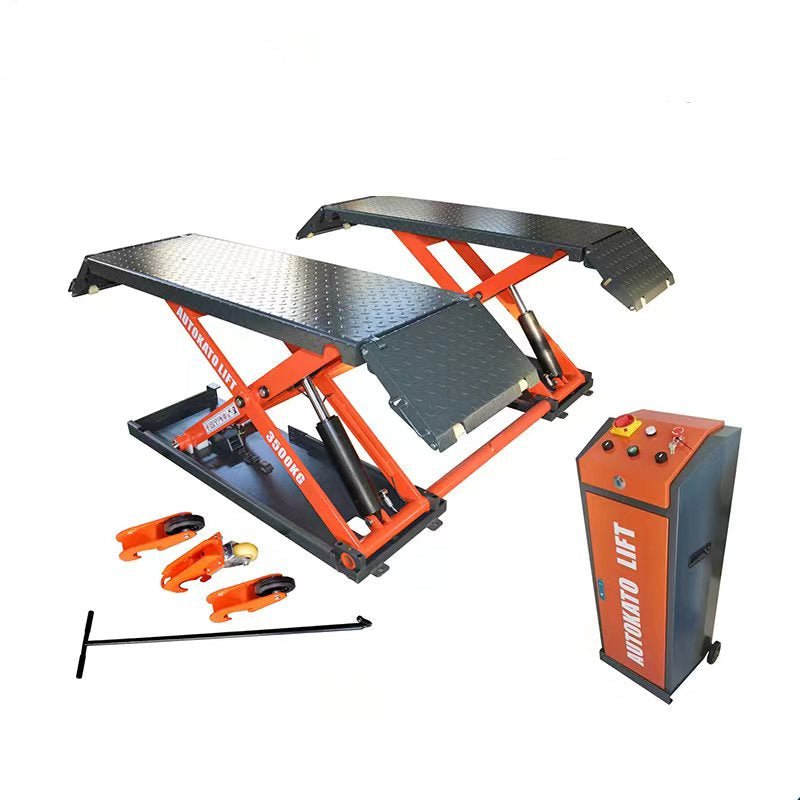

KATOOL KT-X85 8000 lbs. Electric Lock Mid-Rise Scissor Lift (110V or 220V)
The KATOOL KT-X85 Mid-Rise Scissor Lift combines powerful lifting performance with modern electric convenience. Designed for professional auto shops and serious home garages, this lift features an 8,000 lb. capacity and operates with a durable electric safety lock release system—no air compressor required. Whether you need a mobile setup or a permanent installation, the KT-X85 adapts to your space with ease.
Built for longevity and safety, the KT-X85 is CE approved and rigorously tested to exceed dynamic and static load standards. It features a 24V low-voltage control system, integrated height limit switch, and rugged rubber lifting blocks. The heavy-duty aluminum motor with integrated cooling fan ensures reliable, long-duration operation using either 110V or 220V power.
Additional highlights include drive-up ramps that lock in place to extend the platform for longer vehicles, self-lubricating bushings for reduced maintenance, and a convenient mobile kit for easy positioning. Ideal for quick service jobs, tire work, detailing, and general vehicle maintenance.
| Key Features |
|---|
| 8,000 lbs (3,500 kg) Lifting Capacity – Supports cars, trucks, and SUVs with ease |

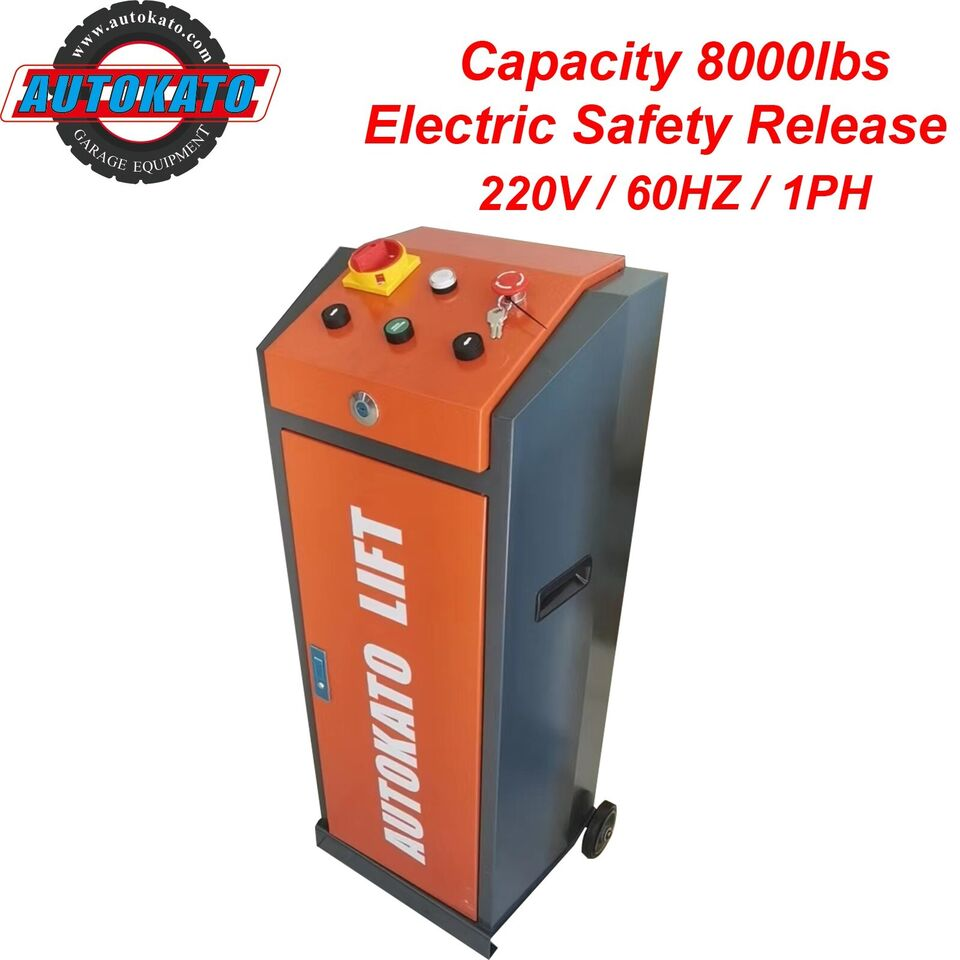

| Electric Safety Lock Release – No air compressor required |
| CE Certified – Meets 115% dynamic and 150% static load standards |
| Portable or Fixed Installation – Includes mobile kit |
| 24V Safe Control System – Enhanced operator protection |
| Height Limit Switch – Prevents over-extension |
| Drive-Up Ramp Lock Design – Platform extension for longer vehicles |
| Top-Tier Hydraulic System – With aluminum motor and cooling fan |
| Composite Rubber Blocks Included – Protects vehicle frames |
| Self-Lubricated Bushings – Reduce wear and maintenance |

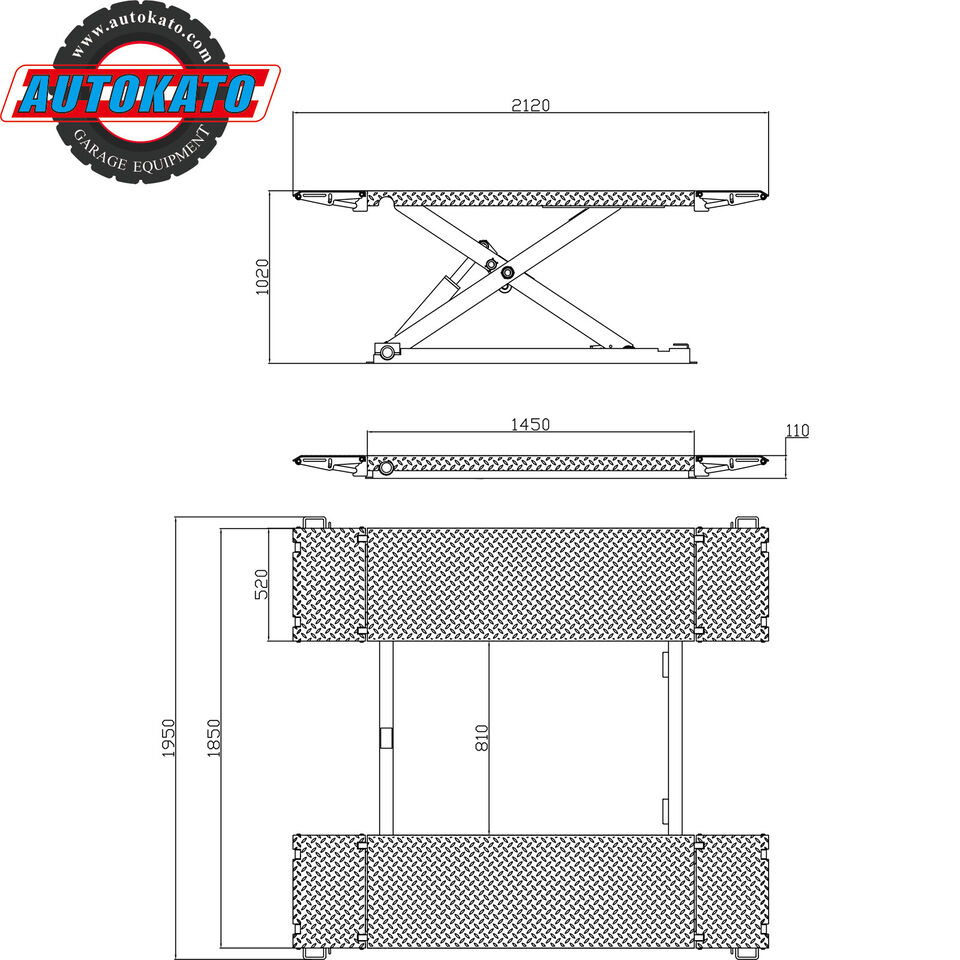

| Specification | Value |
|---|---|
| Lifting Capacity | 8,000 lbs / 3,500 kg |
| Max Lifting Height | 40.15″ / 1020 mm |
| Minimum Height | 4.25″ / 110 mm |
| Platform Length | 57″ / 1450 mm |
| Overall Length | 83.5″ / 2120 mm |
| Platform Width | 20.5″ / 520 mm |
| Overall Width | 76.75″ / 1950 mm |
| Motor | 110V or 220V / 60Hz / 1PH |
| Net Weight | 1,213 lbs / 550 kg |
