Description

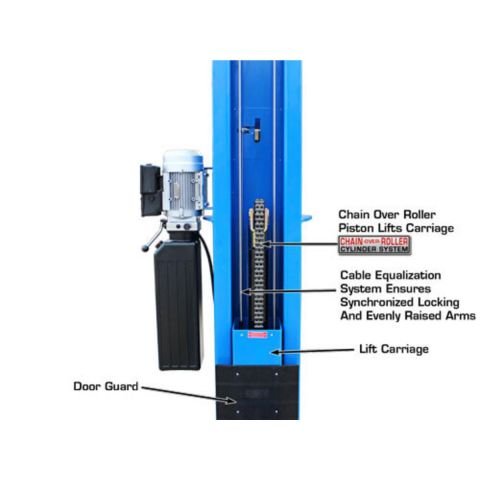

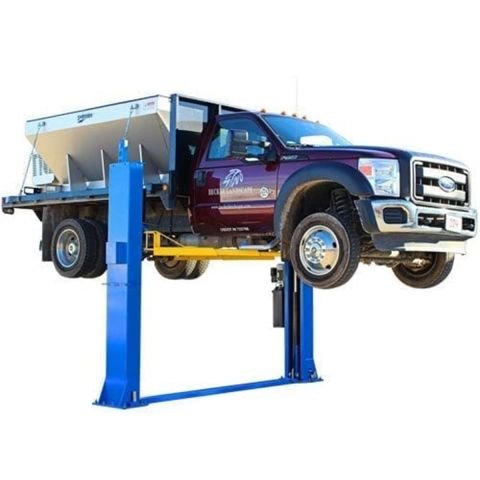

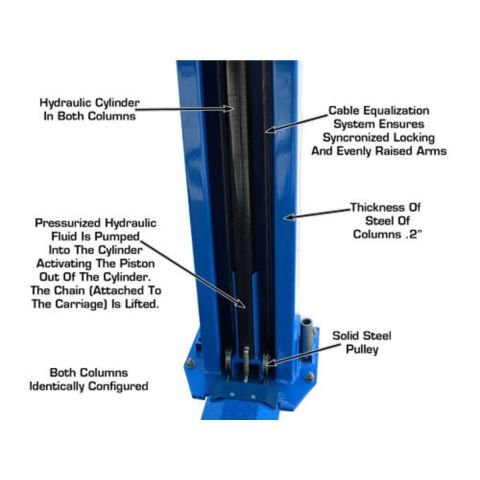

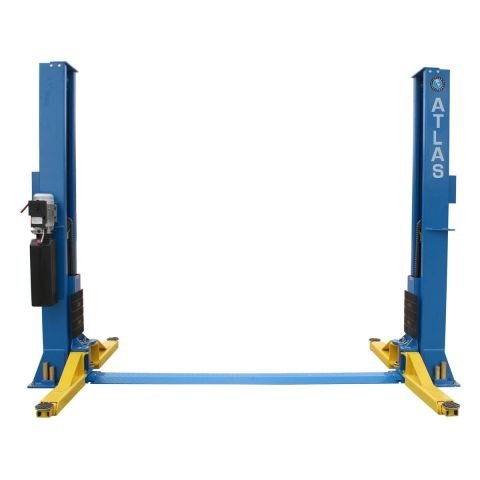

The Atlas® BP12000X is a commercial-grade, heavy-duty two-post baseplate lift with a 12,000 lb. lifting capacity—designed for shops that need strength in a low-ceiling environment. Its open-top, baseplate-style design makes it ideal for garages with height restrictions, while the oversized columns and dual hydraulic chain-over cylinders ensure long-lasting lifting power. The BP12000X features adjustable column spacing, allowing for flexible installation to accommodate wider trucks, trailers, or easier drive-through clearance. Equipped with 3-stage symmetric arms, automatic arm restraints, and rubber carriage guards, this lift is built for both safety and efficiency. It also includes a 12-piece truck adapter set, mounting hardware, and a durable powder-coated finish—making it a reliable choice for professional service bays handling heavier vehicles.
| Product Features |
|---|

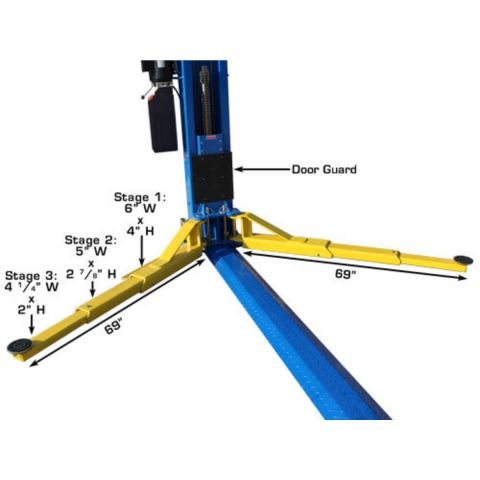

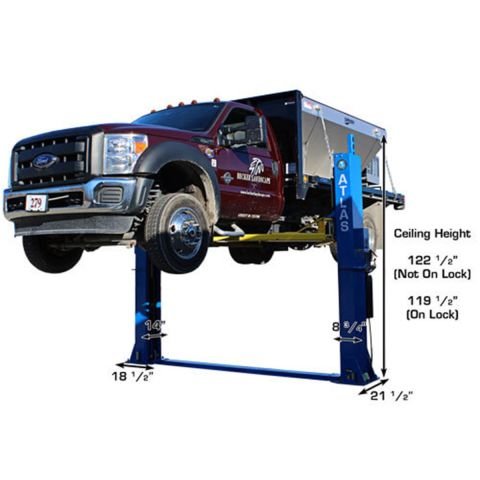

| 12,000 lb. Capacity Heavy Duty, Commercial Grade Baseplate, Open-Top Style Lift Adjustable Width Installation Overall Height: 122 1/2″ (10′ 2 1/2″) 3-Stage Symmetric Arms Automatic Arm Restraints Single-Point Lock Release Rubber Guards on Carriages Dual Hydraulic Chain-Over Cylinders Durable Powder Coat Finish Free 12-Piece Truck Adapter Set Mounting Hardware Included Shipping Weight: 2,130 lbs. 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only |
| Product Specifications | |
|---|---|
| Capacity | 12,000 LB. |

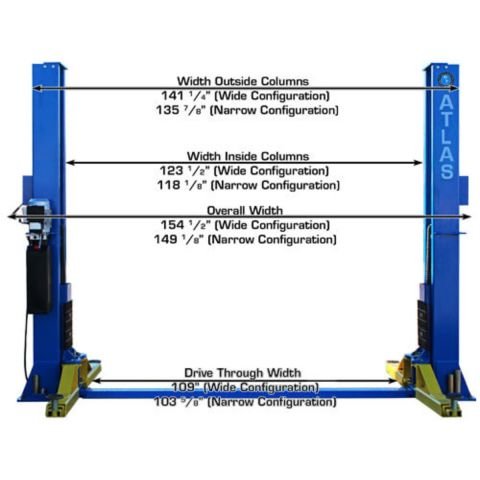

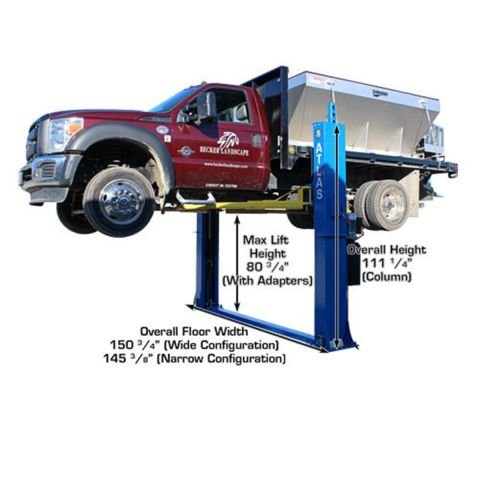

| Overall Floor Width | 149 3/8″ or 154 1/2″ |

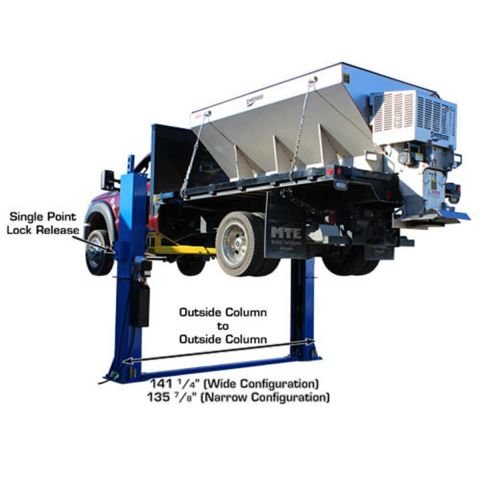

| Outside Column to Column | 135 7/8″ or 141 1/4″ |

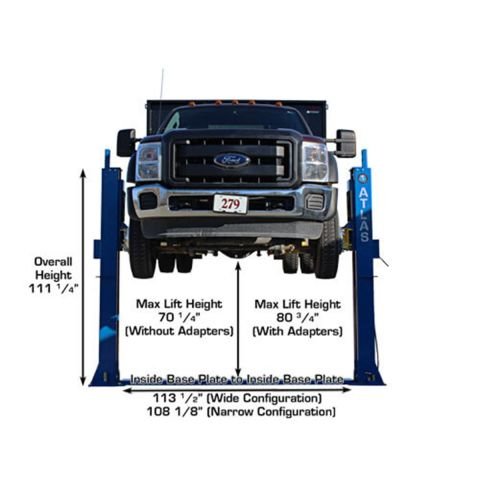

| Max Lift Height (No Adapters) | 77 1/2″ |

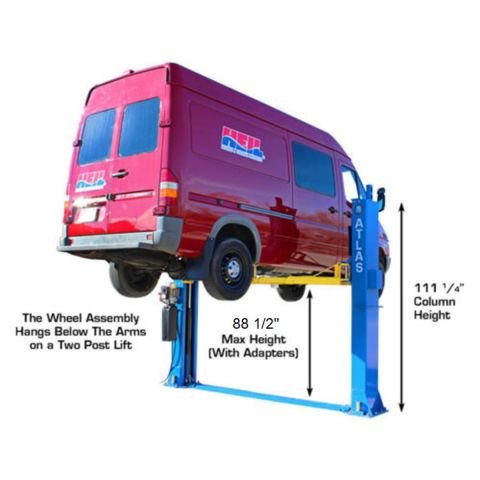

| Max Lift Height (With Adapters) | 88 1/2″ |

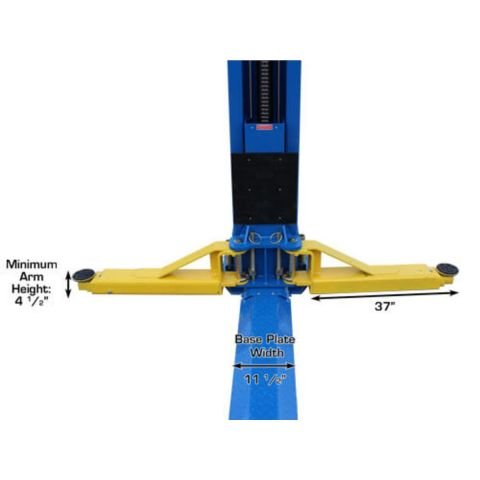

| Minimum Arm Height | 4″ |
| Inside Column Height | 118 1/8″ or 123 1/2″ |
| Drive Thru Clearance | 103 5/8″ or 109″ |
| Column Dimensions | 8 3/4″ x 14″ |
| Power Requirements | 220V Single Phase, 30 Amp Breaker |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

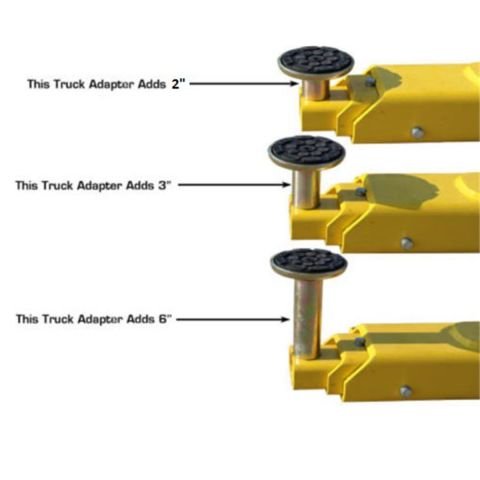

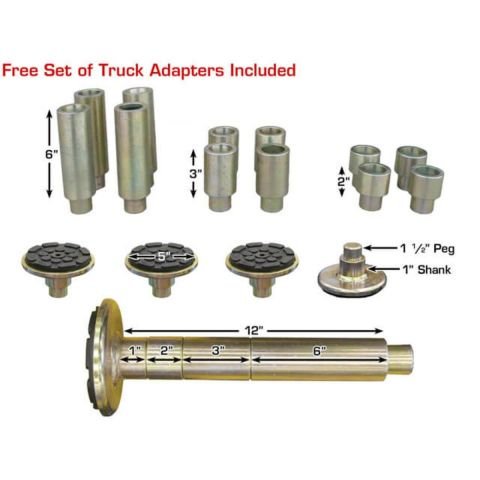

| Adapter Heights | 4 Each – 2″, 3″, 6″ |

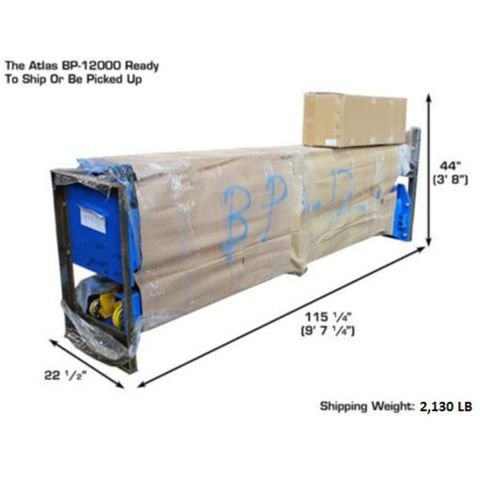

| Shipping Weight | 2,130 LBS. |
